006710064

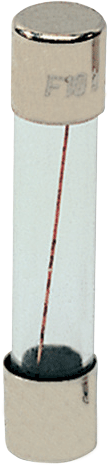

Mini fuse 6,3x32 F 160mA/250V Fuse link
- ETI Code:
- 006710064
- Product group:
- Mini fuse
- Catalogue Group:
- Mini fuse
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 6,3x32
- Time-Current Characteristic:
- F
- Rated AC voltage:
- 250 V
- Rated DC voltage:
- 250 V
- Rated current:
- 0.16 A
- Standards:
- IEC 60127-1, IEC 60127-2
- Application:
- Electronic devices protection
- Breaking capacity AC:
- 0.035 kA
5 Documents
21 Logistics
Product
- Net weight of the product
- 0.01 kg
- Net width
- 6.4 mm
- Net height
- 31.8 mm
- Net depth
- 6.35 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 8024873013884
- Basic packaging weight
- 0.025 kg
- Basic Packaging Dimensions Height
- 8 mm
- Basic Packaging Dimensions Width
- 35 mm
- Basic Packaging Dimensions Depth
- 65 mm
- Basic packaging volume
- 0.018 dm³
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 3838895705277
- Transport packaging weight
- 0.2 kg
- Transport Packaging Dimensions Height
- 38 mm
- Transport Packaging Dimensions Width
- 70 mm
- Transport Packaging Dimensions Depth
- 81 mm
- Transport packaging volume
- 0.215 dm³
- Pallet quantity
- 300,000 pcs
- Customs tariff
- 85361010
5 ETIM
- Model
- Glass fuse
- Release characteristic
- Fast (F)
- Size
- 6.3x32 mm
- Rated voltage
- 250 V
- Rated current
- 0.16 A
ETIM Classification – Version 9.0
