006710123

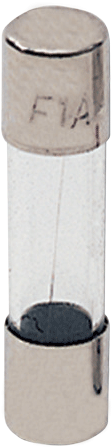

Mini fuse 5x20 FF 3,15A/250V Fuse link
- ETI Code:
- 006710123
- Catalogue Group:
- Semiconductor Protection
- Product group:
- Semiconductor Protection
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 5x20
- Time-Current Characteristic:
- FF
- Rated AC voltage:
- 250 V
- Rated DC voltage:
- 250 V
- Rated current:
- 3.15 A
- Standards:
- IEC 60127-1, IEC 60127-2
- Application:
- Electronic devices protection
- Power dissipation:
- 1.73 W
- Breaking capacity AC:
- 1.5 kA
- Operating joule integral (A2s):
- 4.6
5 Documents
12 Logistics
Product
- Net depth
- 7.19 mm
- Net weight of the product
- 5 g
- Net width
- 7.2 mm
- Net height
- 20 mm
- Stock unit of measure
- pcs
- EAN code for a single product
- 3838400170453
Transport Packaging
- Transport packaging weight
- 0.05 kg
- Transport packaging volume
- 0.005 dm³
- Transport packaging quantity
- 10 pcs
- Customs tariff
- 85361010
- EAN code for a transport packaging
- 8024873023166
- Pallet quantity
- 160,000 pcs
5 ETIM
- Model
- Ceramic fuse
- Release characteristic
- Super fast (FF)
- Size
- 5x20 mm
- Rated voltage
- 250 V
- Rated current
- 3.15 A
ETIM Classification – Version 9.0
