002626241

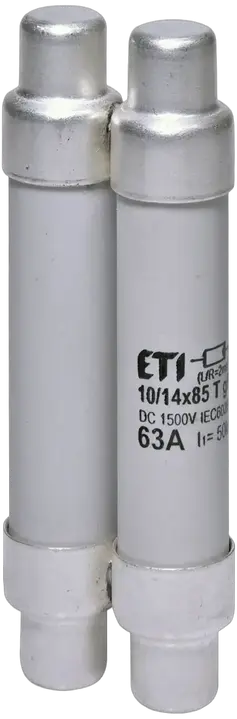

CH 10/14x85 T gPV 63A/1500V Fuse link
- ETI Code:
- 002626241
- Type description:
- CH
- Fuse type:
- CH
- Size:
- 10/14x85
- Rated current:
- 63 A
- Rated DC voltage:
- 1500 V
- Time-Current Characteristic:
- gPV
- L/R:
- 2 ms
- Breaking capacity DC:
- 50 kA
- Application:
- For protection of photovoltaic modules
- Power dissipation (0,7xIn):
- 5.6 W
- Power dissipation:
- 13.7 W
- Operating joule integral (A2s):
- 4,300
- Prearcing joule integral (A2s):
- 770
- Standards:
- IEC 60269-6, UL 248-19
- UL certificate:
- E347771
5 Documents
22 Logistics
Product
- EAN code for a single product
- 3838895966555
- Net weight of the product
- 56 g
- Net width
- 29 mm
- Net height
- 85 mm
- Net depth
- 14.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 3838895966562
- Basic packaging weight
- 0.297 kg
- Basic Packaging Dimensions Height
- 15 mm
- Basic Packaging Dimensions Width
- 150 mm
- Basic Packaging Dimensions Depth
- 90 mm
- Basic packaging volume
- 0.202 dm³
Transport Packaging
- Transport packaging quantity
- 130 pcs
- EAN code for a transport packaging
- 3838895977612
- Transport packaging weight
- 7.912 kg
- Transport Packaging Dimensions Height
- 0.178 m
- Transport Packaging Dimensions Width
- 0.21 m
- Transport Packaging Dimensions Depth
- 0.17 m
- Transport packaging volume
- 0.006 m³
- Pallet quantity
- 15,600 pcs
- Customs tariff
- 85351000
4 ETIM
- Size
- Other
- Rated voltage
- 1,500 V
- Rated current
- 63 A
- Utilization category
- Other
ETIM Classification – Version 9.0
