Cylindrical fuse-links for PV (photovoltaic) applications are specialized protective devices designed to safeguard solar power systems. These fuse-links are engineered to interrupt overcurrent conditions, protecting critical components like PV panels, inverters, and wiring from damage caused by short circuits or system faults. Their compact cylindrical design makes them ideal for space-constrained environments typical of solar installations.

This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

002637129 Obsolete

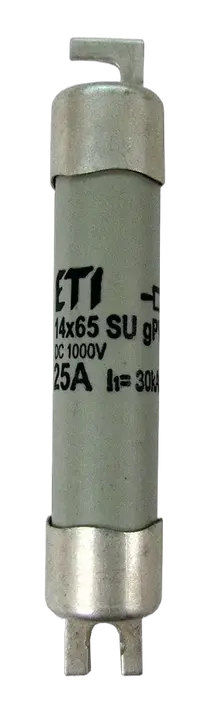

Image of *CH14x65 gPV 25A 1000V

*CH14x65 gPV 25A 1000V Fuse link

ETI Code:: 002637129
Product group:: Special purpose fuses
Product subgroup:: PV
Catalogue Group:: Special purpose fuses
Catalogue Subgroup:: PV Fuse
Type description:: CH
Fuse type:: CH
Rated current:: 25 A
Rated DC voltage:: 1000 V
Time-Current Characteristic:: gPV
Breaking capacity DC:: 10 kA

Product

Net weight of the product: 22.7 g
Stock unit of measure: pcs

Transport Packaging

Customs tariff: 85361050

Size: Other
Rated current: 25 A
Utilization category: Other

ETIM Classification – Version 9.0

002637129 Fuse link *CH14x65 gPV 25A 1000V Green protect CH gPV CH 14x65 gPV 1000V standard contacts International Fuse links D, D0, C Photovoltaic fuse links CH gPV Breaking capacity DC: 10 kA Time-Current Characteristic: gPV Fuse type: CH Rated DC voltage: 1000 V/1000 V Rated current: 25 A/25 A Fuse link CH Rated current: 25 A/25 A Rated DC voltage: 1000 V/1000 V Time-Current Characteristic: gPV
