Cylindrical fuse-links for PV (photovoltaic) applications are specialized protective devices designed to safeguard solar power systems. These fuse-links are engineered to interrupt overcurrent conditions, protecting critical components like PV panels, inverters, and wiring from damage caused by short circuits or system faults. Their compact cylindrical design makes them ideal for space-constrained environments typical of solar installations.

This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

002637329 Obsolete

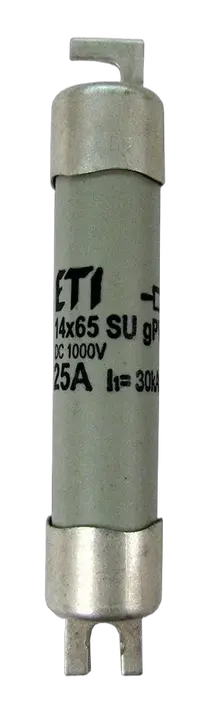

Image of *SU CH14x65 gPV 25A 1000V

*SU CH14x65 gPV 25A 1000V Fuse link

ETI Code:: 002637329
Product group:: Special purpose fuses
Product subgroup:: PV
Catalogue Group:: Special purpose fuses
Catalogue Subgroup:: PV Fuse
Type description:: CH SU
Fuse type:: CH-SU
Rated current:: 25 A
Rated DC voltage:: 1000 V
Time-Current Characteristic:: gPV
Breaking capacity DC:: 10 kA

Product

Net weight of the product: 24.9 g
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838895817819
Basic packaging weight: 0.198 kg
Basic packaging volume: 0.126 dm³

Transport Packaging

Transport packaging quantity: 200 pcs
EAN code for a transport packaging: 3838895817826
Transport packaging weight: 4.33 kg
Transport packaging volume: 3.386 dm³
Pallet quantity: 24,000 pcs
Customs tariff: 85361050

Size: Other
Rated current: 25 A
Utilization category: Other

ETIM Classification – Version 9.0

002637329 Fuse link *SU CH14x65 gPV 25A 1000V Green protect CH gPV CH 14x65 gPV 1000V SU contacts International Fuse links D, D0, C Photovoltaic fuse links CH gPV Breaking capacity DC: 10 kA Time-Current Characteristic: gPV Fuse type: CH-SU Rated DC voltage: 1000 V/1000 V Rated current: 25 A/25 A Fuse link CH Rated current: 25 A/25 A Rated DC voltage: 1000 V/1000 V Time-Current Characteristic: gPV
