Fuse bases

Introduction

Fuse bases for high-voltage fuse-links are integral components of electrical systems, designed to securely hold and connect fuse-links to high-voltage circuits. They provide a stable and reliable mounting platform, ensuring that fuse-links perform effectively during fault conditions. These bases are crucial for maintaining safety and operational efficiency in high-voltage applications, such as protecting transformers, switchgear, and power distribution networks.

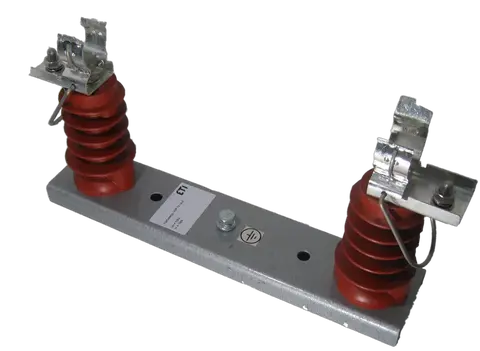

Image of VVP 7,2 1p-N

VVP 7,2 1p-N

Class name: Fuse holder
Type description: VVP-N
Rated AC voltage: 7,200 V
Rated current: 200 A

Image of VVP 17,5 1p-N

VVP 17,5 1p-N

Class name: Fuse holder
Rated AC voltage: 17,500 V
Rated current: 200 A

Image of VVP 12 1p-N

VVP 12 1p-N

Class name: Fuse holder
Type description: VVP-N
Rated AC voltage: 12,000 V
Rated current: 200 A

Image of VVP 24 1p-N

VVP 24 1p-N

Class name: Fuse holder
Type description: VVP-N
Rated AC voltage: 24,000 V
Rated current: 200 A

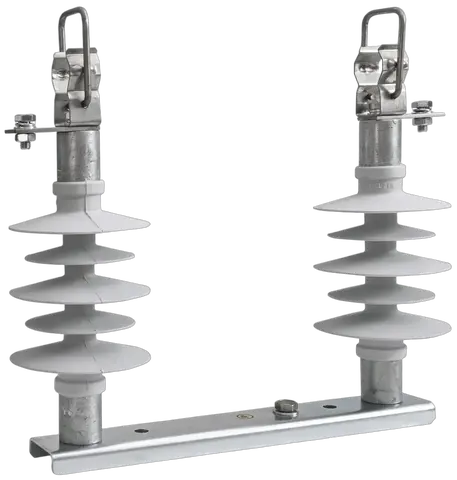

Image of VVP 7,2 1p-Z

VVP 7,2 1p-Z

Class name: Fuse holder
Type description: VVP-Z
Rated AC voltage: 7,200 V
Rated current: 200 A

Image of VVP 24 1p-Z

VVP 24 1p-Z

Class name: Fuse holder
Type description: VVP-Z
Rated AC voltage: 24,000 V
Rated current: 200 A

Image of VVP 17,5 1p-Z

VVP 17,5 1p-Z

Class name: Fuse holder
Rated AC voltage: 17,500 V
Rated current: 200 A

Image of VVP 12 1p-Z

VVP 12 1p-Z

Class name: Fuse holder
Type description: VVP-Z
Rated AC voltage: 12,000 V
Rated current: 200 A

Image of VVP 7,2 1p-N + NK 7,2 BSW

VVP 7,2 1p-N + NK 7,2 BSW

Class name: Fuse holder
Type description: VVP-N + NK BSW (Fuse holder + microswitch fuse monitoring)
Rated AC voltage: 7,200 V
Rated current: 200 A

Image of VVP 12 1p-N + NK 12 BSW

VVP 12 1p-N + NK 12 BSW

Class name: Fuse holder
Type description: VVP-N + NK BSW (Fuse holder + microswitch fuse monitoring)
Rated AC voltage: 12,000 V
Rated current: 200 A

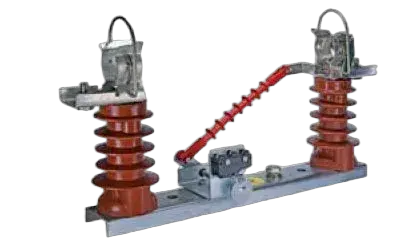

Image of VVP 17 1p-N + NK 17 BSW

VVP 17 1p-N + NK 17 BSW

Class name: Fuse holder
Type description: VVP-N + NK BSW (Fuse holder + microswitch fuse monitoring)
Rated AC voltage: 17,500 V
Rated current: 200 A

Image of VVP 24 1p-N + NK 24 BSW

VVP 24 1p-N + NK 24 BSW

Class name: Fuse holder
Type description: VVP-N + NK BSW (Fuse holder + microswitch fuse monitoring)
Rated AC voltage: 24,000 V
Rated current: 200 A

Image of VVP 36 1p-N + NK 36 BSW

VVP 36 1p-N + NK 36 BSW

Class name: Fuse holder
Type description: VVP-N + NK BSW (Fuse holder + microswitch fuse monitoring)
Rated AC voltage: 36,000 V
Rated current: 200 A

Image of NK 36 BSW

NK 36 BSW

Class name: Micro switch
Rated AC voltage: 36,000 V

Image of NK 12 BSW

NK 12 BSW

Class name: Micro switch
Rated AC voltage: 12,000 V

Image of NK 7,2 BSW

NK 7,2 BSW

Class name: Fuse-base accessory
Rated AC voltage: 7,200 V

Image of NK 17 BSW

NK 17 BSW

Class name: Micro switch
Rated AC voltage: 17,500 V

Image of NK 24 BSW

NK 24 BSW

Class name: Micro switch
Rated AC voltage: 24,000 V

Image of PVV UNI L

PVV UNI L

Class name: Fuse-base accessory
Rated AC voltage: 7200/36000 V

Image of PVV UNI

PVV UNI

Class name: Fuse-base accessory
Rated AC voltage: 7200/36000 V
