aM Characteristic - Products & Solutions

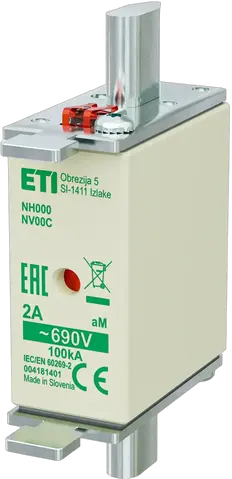

NH000 aM 2A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 2 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 0.2 W
Prearcing joule integral (A2s): 3
Operating joule integral (A2s): 340
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 4A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 4 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 0.3 W
Prearcing joule integral (A2s): 120
Operating joule integral (A2s): 1,590
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 6A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 6 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 0.4 W
Prearcing joule integral (A2s): 520
Operating joule integral (A2s): 1,220
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 10A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 10 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 0.5 W
Prearcing joule integral (A2s): 165
Operating joule integral (A2s): 1,590
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 16A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 16 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 0.7 W
Prearcing joule integral (A2s): 929
Operating joule integral (A2s): 3,970
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 20A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 20 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 0.9 W
Prearcing joule integral (A2s): 620
Operating joule integral (A2s): 6,770
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 25A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 25 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 1.3 W
Prearcing joule integral (A2s): 1,080
Operating joule integral (A2s): 7,820
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 32A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 32 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 1.4 W
Prearcing joule integral (A2s): 3,340
Operating joule integral (A2s): 13,000
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 35A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 35 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 1.7 W
Prearcing joule integral (A2s): 2,830
Operating joule integral (A2s): 12,300
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 40A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 40 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 2 W
Prearcing joule integral (A2s): 8,720
Operating joule integral (A2s): 22,200
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

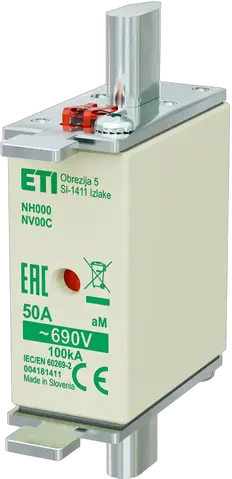

NH000 aM 50A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 50 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 2.6 W
Prearcing joule integral (A2s): 9,310
Operating joule integral (A2s): 30,930
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 63A/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 63 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 3.1 W
Prearcing joule integral (A2s): 10,030
Operating joule integral (A2s): 52,160
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 80A/500V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 80 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 500 V
Breaking capacity AC: 120 kA
Power dissipation: 4.2 W
Prearcing joule integral (A2s): 12,800
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH000 aM 100A/500V

Class name: Fuse link
Fuse type: NH
Size: NH000
Rated current: 100 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 500 V
Breaking capacity AC: 120 kA
Power dissipation: 5.8 W
Prearcing joule integral (A2s): 22,000
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH00 aM 50A/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 50 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 2.7 W
Prearcing joule integral (A2s): 13,400
Operating joule integral (A2s): 43,500
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH00 aM 63A/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 63 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 3.9 W
Prearcing joule integral (A2s): 20,600
Operating joule integral (A2s): 60,800
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH00 aM 80A/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 80 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 4.5 W
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH00 aM 100A/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 100 A
Time-Current Characteristic: aM
Indicator: Combination fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 5.8 W
Prearcing joule integral (A2s): 32,600
Operating joule integral (A2s): 140,200
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH00 aM 125A/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 125 A
Time-Current Characteristic: aM
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 7.9 W
Prearcing joule integral (A2s): 45,000
Operating joule integral (A2s): 200,000
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit

NH00 aM 160A/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 160 A
Time-Current Characteristic: aM
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 10.3 W
Prearcing joule integral (A2s): 71,000
Operating joule integral (A2s): 320,000
Standards: VDE 0636-2011
Application: For relays, contactors and motors protection in case of short-circuit
