Fuse bases NV/NH are essential components in low voltage electrical systems, providing a secure and reliable housing for NH fuse links. They serve as the interface between the fuse link and the electrical circuit, ensuring proper connection and protection. Fuse bases are typically designed for surface mounting on mounting plates or DIN rails, allowing for easy installation and integration into distribution boards and panels.

001701103 Obsolete

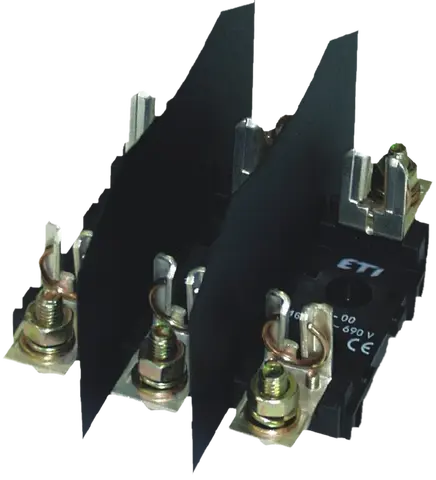

Image of * PLNV - 00/3 D

* PLNV - 00/3 D Fuse - base

ETI Code:: 001701103
Size:: NH00
Number of poles:: 3
Rated current:: 160 A
Rated AC voltage:: 690 V
Type of Installation:: Base plate mounting

Product

Net weight of the product: 0.449 kg
Stock unit of measure: pcs

Basic Packaging

EAN code for a basic packaging: 3838895593157
Basic packaging weight: 0.5 kg
Basic packaging volume: 1.5 dm³
Basic packaging quantity: 1 pcs

Transport Packaging

Transport packaging weight: 22.5 kg
Transport packaging volume: 67.5 dm³
Transport packaging quantity: 45 pcs
Customs tariff: 85389099
EAN code for a transport packaging: 3838895593164
Pallet quantity: 1,215 pcs

Construction size: NH00
Number of poles: 3
Rated current: 160 A

ETIM Classification – Version 9.0
