004122043

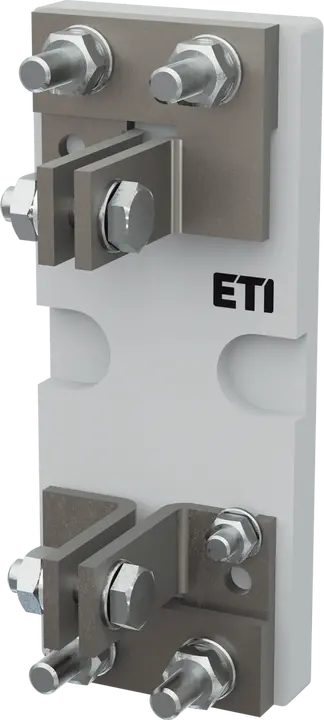

US1-3-1/80-110/1250A 1400V Fuse - base
- ETI Code:
- 004122043
- IP rating:
- IP00
- Type description:
- UQ
- Size:
- NHS/80-110
- Number of poles:
- 1
- Rated current:
- 1250 A
- Rated AC voltage:
- 1400 V
- Type of Installation:
- Base plate mounting
15 Logistics
Product
- EAN code for a single product
- 3838400168610
- Net weight of the product
- 1.13 kg
- Net width
- 85 mm
- Net height
- 76 mm
- Net depth
- 205 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 2 pcs
- EAN code for a transport packaging
- 3838895633471
- Transport packaging weight
- 2.52 kg
- Transport Packaging Dimensions Height
- 250 mm
- Transport Packaging Dimensions Width
- 100 mm
- Transport Packaging Dimensions Depth
- 100 mm
- Transport packaging volume
- 2.5 dm³
- Pallet quantity
- 476 pcs
- Customs tariff
- 85366990
5 ETIM
- Mounting method
- Screw-on
- Construction size
- Other
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 1,250 A
ETIM Classification – Version 9.0
