004123003

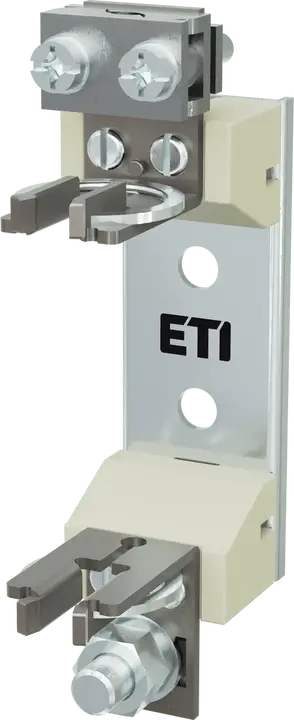

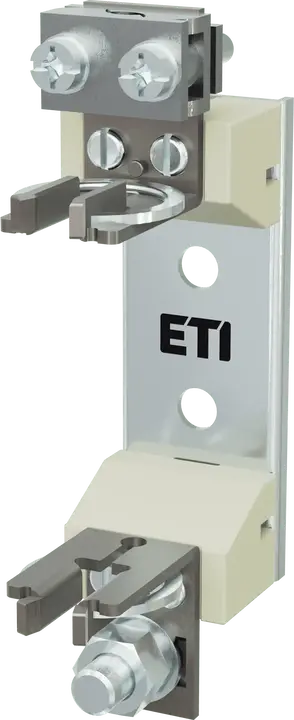

PK 00 M8-P00 1p S Fuse - base
- ETI Code:
- 004123003
- IP rating:
- IP00
- Type description:
- PK
- Size:
- NH00
- Number of poles:
- 1
- Rated current:
- 160 A
- Rated AC voltage:
- 690 V
- Breaking capacity AC:
- 200 kA
- Type of Installation:
- Base plate mounting
- Overvoltage Category:
- III
- Standards:
- IEC 60269-2
- Ambient temperature:
- -25/55 °C
- Conventional free air thermal current with fuse links:
- 160 A
- Conventional free air thermal current with solid links:
- 200 A
- Max Permissable Power Dissipation per Fuse Link:
- 12 W
- Rated operating mode:
- uninterrupted
- Pollution Degree:
- 3
- Rated Frequency:
- 40/60 Hz
22 Logistics
Product
- EAN code for a single product
- 3838400038593
- Net weight of the product
- 0.19 kg
- Net width
- 30 mm
- Net height
- 119 mm
- Net depth
- 58.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895771487
- Basic packaging weight
- 0.63 kg
- Basic Packaging Dimensions Height
- 0.07 m
- Basic Packaging Dimensions Width
- 0.11 m
- Basic Packaging Dimensions Depth
- 0.135 m
- Basic packaging volume
- 0.001 m³
Transport Packaging
- Transport packaging quantity
- 75 pcs
- EAN code for a transport packaging
- 3838895771494
- Transport packaging weight
- 16.205 kg
- Transport Packaging Dimensions Height
- 0.285 m
- Transport Packaging Dimensions Width
- 0.343 m
- Transport Packaging Dimensions Depth
- 0.363 m
- Transport packaging volume
- 0.035 m³
- Pallet quantity
- 675 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- NH00
- Number of poles
- 1
- Connection type
- Crimping
- Rated current
- 160 A
ETIM Classification – Version 9.0
