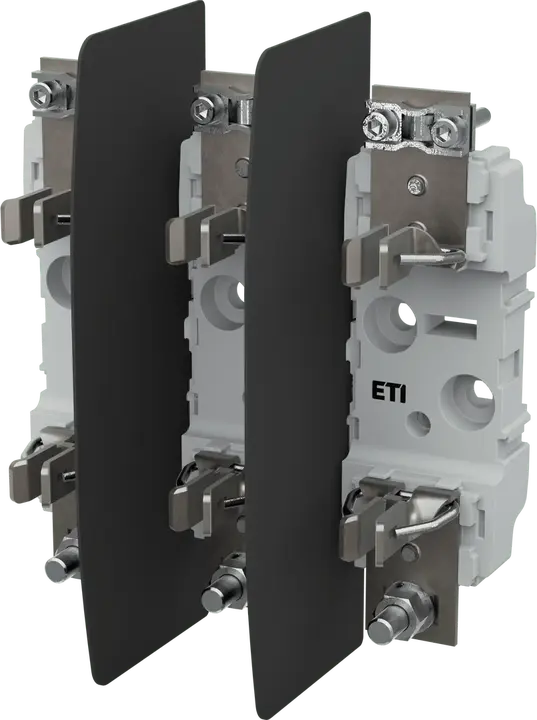

PT 1 M10-S12 3p Fuse - base
- ETI Code:
- 004131301
- IP rating:
- IP00
- Type description:
- PT
- Size:
- NH1
- Number of poles:
- 3
- Rated current:
- 250 A
- Rated AC voltage:
- 690 V
- Breaking capacity AC:
- 120 kA
- Type of Installation:
- DIN rail mounting / Screw mounting
- Overvoltage Category:
- III
- Standards:
- IEC 60269-2
- Ambient temperature:
- -25/55 °C
- Conventional free air thermal current with fuse links:
- 250 A
- Conventional free air thermal current with solid links:
- 320 A
- Max Permissable Power Dissipation per Fuse Link:
- 32 W
- Rated operating mode:
- uninterrupted
- Pollution Degree:
- 3
- Rated Frequency:
- 40/60 Hz
5 Documents
21 Logistics
Product
- Net weight of the product
- 1.183 kg
- Net width
- 191.8 mm
- Net height
- 240.8 mm
- Net depth
- 103 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895777793
- Basic packaging weight
- 1.317 kg
- Basic Packaging Dimensions Height
- 120 mm
- Basic Packaging Dimensions Width
- 265 mm
- Basic Packaging Dimensions Depth
- 190 mm
- Basic packaging volume
- 6.042 dm³
Transport Packaging
- Transport packaging quantity
- 4 pcs
- EAN code for a transport packaging
- 3838895777809
- Transport packaging weight
- 5.723 kg
- Transport Packaging Dimensions Height
- 0.285 m
- Transport Packaging Dimensions Width
- 0.343 m
- Transport Packaging Dimensions Depth
- 0.363 m
- Transport packaging volume
- 0.035 m³
- Pallet quantity
- 80 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- NH1
- Number of poles
- 3
- Connection type
- Crimping
- Rated current
- 250 A
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
29 Tags
004131301Fuse - basePT 1 M10-S12 3pNV/NHFuse basesPTSize 13p3pInternationalFuse links NHFuse bases NH ACSize: NH1Max Permissable Power Dissipation per Fuse Link: 32 WPollution Degree: 3Rated operating mode: uninterruptedBreaking capacity AC: 120 kAType description: PTConventional free air thermal current with solid links: 320 ANumber of poles: 3Ambient temperature: -25 °C/55 °CRated AC voltage: 690 V/690 VType of Installation: DIN rail mounting / Screw mountingStandards: IEC 60269-2Conventional free air thermal current with fuse links: 250 AOvervoltage Category: IIIRated current: 250 A/250 ARated Frequency: 40 Hz/60 HzFuse - base Number of poles: 3 Size: NH1 Rated current: 250 A/250 A Rated AC voltage: 690 V/690 V
