004186438

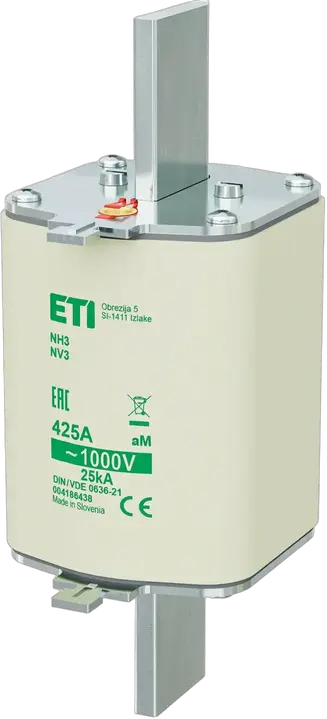

NH3/85 aM 425A/1000V Fuse link

ETI Code:: 004186438
Fuse type:: NH
Size:: NH3/85
Rated current:: 425 A
Time-Current Characteristic:: aM
Indicator:: Top fuse status indicator
Rated AC voltage:: 1000 V
Breaking capacity AC:: 25 kA
Power dissipation:: 53 W
Prearcing joule integral (A2s):: 550,000
Operating joule integral (A2s):: 3,300,000
Standards:: VDE 0636-2011
Application:: For relays, contactors and motors protection in case of short-circuit

Accessories

Product

Net weight of the product: 980 g
Net width: 64 mm
Net height: 170 mm
Net depth: 84 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895640677
Basic packaging weight: 1.04 kg
Basic Packaging Dimensions Height: 0.077 m
Basic Packaging Dimensions Width: 0.224 m
Basic Packaging Dimensions Depth: 0.102 m
Basic packaging volume: 0.002 m³

Transport Packaging

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895640684
Transport packaging weight: 9.71 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.295 m
Transport Packaging Dimensions Depth: 0.235 m
Transport packaging volume: 0.018 m³
Pallet quantity: 468 pcs
Customs tariff: 85361090

Rated switching capacity AC: 25 kA
Voltage type: AC
Fuse construction type according to IEC 60269: Other
Rated voltage AC: 1,000
Power loss at rated current: 53 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 425 A
Utilization category: aM (switchgear protection)

ETIM Classification – Version 9.0
