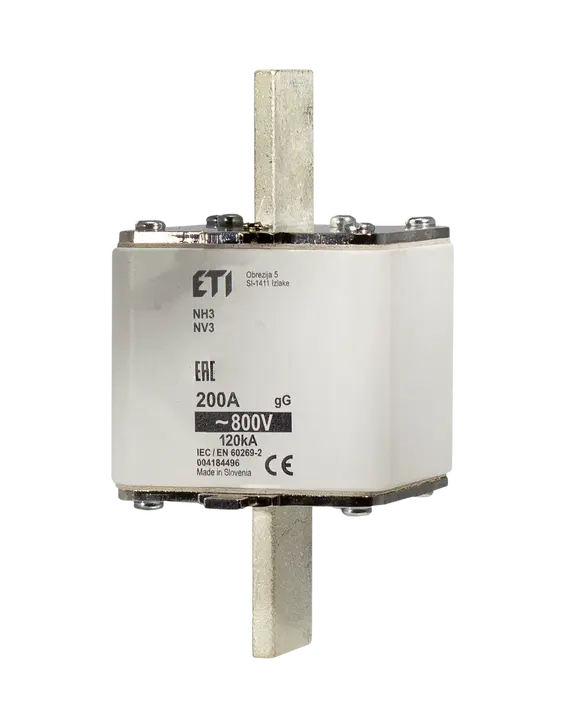

004184496
Obsolete
*NH3 gG 200A/800V Fuse link
- ETI Code:
- 004184496
- Fuse type:
- NH
- Size:
- NH3
- Rated current:
- 200 A
- Time-Current Characteristic:
- gG
- Indicator:
- Top fuse status indicator
- Rated AC voltage:
- 800 V
- Breaking capacity AC:
- 120 kA
- Power dissipation:
- 16 W
- Prearcing joule integral (A2s):
- 50,000
- Operating joule integral (A2s):
- 650,000
- Standards:
- IEC 60269-2
- Application:
- For cable protection on a.c. side of PV inverter
16 Logistics
Product
- EAN code for a single product
- 3838895901013
- Net weight of the product
- 1,300 g
- Net width
- 74 mm
- Net height
- 151.7 mm
- Net depth
- 87.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895819806
- Basic packaging weight
- 3.3 kg
- Basic packaging volume
- 3.81 dm³
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838895819813
- Transport packaging weight
- 17.05 kg
- Transport packaging volume
- 25.92 dm³
- Pallet quantity
- 360 pcs
- Customs tariff
- 85361090
6 ETIM
- Rated switching capacity AC
- 120 kA
- Voltage type
- AC
- Rated voltage AC
- 800 V
- Type of fuse status indicator
- Top fuse status indicator
- Rated current
- 200 A
- Utilization category
- gG (cable protection/equipment protection)
ETIM Classification – Version 9.0
3 Diagrams
0 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
25 Tags
004184496Fuse link*NH3 gG 200A/800VSpecial fusesFuse links gG 800V a.c.NH3NH3NH3NH3InternationalFuse links NHPhotovoltaic fuse links NH 800V a.c.Size: NH3Operating joule integral (A2s): 650000Time-Current Characteristic: gGBreaking capacity AC: 120 kAPower dissipation: 16 WPrearcing joule integral (A2s): 50000Fuse type: NHApplication: For cable protection on a.c. side of PV inverterRated AC voltage: 800 V/800 VStandards: IEC 60269-2Rated current: 200 A/200 AIndicator: Top fuse status indicatorFuse link Fuse type: NH Size: NH3 Rated current: 200 A/200 A Rated AC voltage: 800 V/800 V Time-Current Characteristic: gG
Accessories 3 All Accessories
Similar Products 56 All Products
004184463
NH1 gG 200A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 200 A
- Time-Current Characteristic
- gG

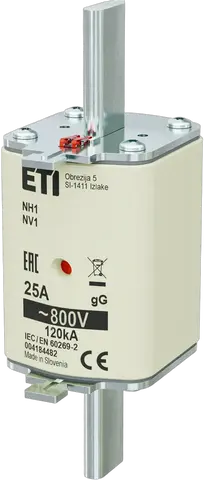

004184482
NH1 gG 25A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 25 A
- Time-Current Characteristic
- gG

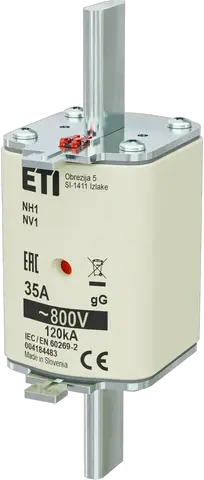

004184483
NH1 gG 35A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 35 A
- Time-Current Characteristic
- gG

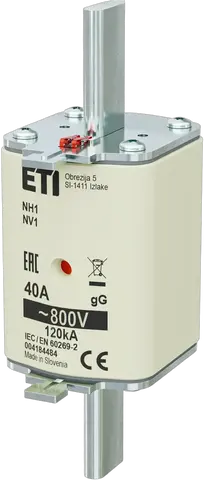

004184484
NH1 gG 40A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 40 A
- Time-Current Characteristic
- gG
004184485
NH1 gG 50A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 50 A
- Time-Current Characteristic
- gG
004184486
NH1 gG 63A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 63 A
- Time-Current Characteristic
- gG

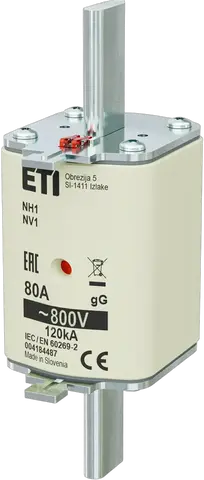

004184487
NH1 gG 80A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 80 A
- Time-Current Characteristic
- gG

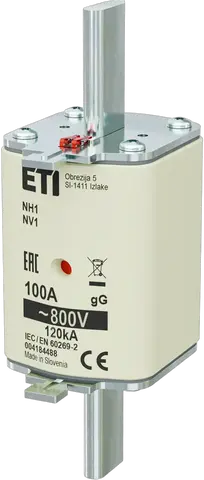

004184488
NH1 gG 100A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 100 A
- Time-Current Characteristic
- gG
004184489
NH1 gG 125A/800V
- Class name
- Fuse link
- Fuse type
- NH
- Size
- NH1
- Rated current
- 125 A
- Time-Current Characteristic
- gG

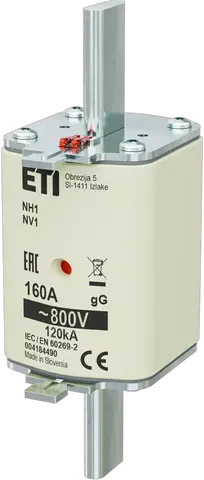

004184490
