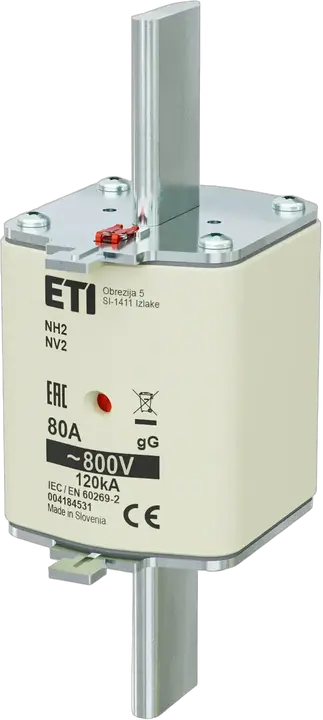

NH2 gG 80A/800V Fuse link
- ETI Code:
- 004184531
- Fuse type:
- NH
- Size:
- NH2
- Rated current:
- 80 A
- Time-Current Characteristic:
- gG
- Indicator:
- Combination fuse status indicator
- Rated AC voltage:
- 800 V
- Breaking capacity AC:
- 120 kA
- Power dissipation (0,7xIn):
- 3.1 W
- Power dissipation:
- 6.9 W
- Prearcing joule integral (A2s):
- 11,000
- Operating joule integral (A2s):
- 145,000
- Standards:
- IEC 60269-2
- Application:
- For cable protection on a.c. side of PV inverter
22 Logistics
Product
- EAN code for a single product
- 3838400105189
- Net weight of the product
- 580 g
- Net width
- 54 mm
- Net height
- 150.2 mm
- Net depth
- 72.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838400105059
- Basic packaging weight
- 1.784 kg
- Basic Packaging Dimensions Height
- 0.078 m
- Basic Packaging Dimensions Width
- 0.169 m
- Basic Packaging Dimensions Depth
- 0.153 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838400105066
- Transport packaging weight
- 9.268 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 780 pcs
- Customs tariff
- 85361090
8 ETIM
- Rated switching capacity AC
- 120 kA
- Voltage type
- AC
- Fuse construction type according to IEC 60269
- NH2
- Rated voltage AC
- 800
- Power loss at rated current
- 6.9 W
- Type of fuse status indicator
- Combination fuse status indicator
- Rated current
- 80 A
- Utilization category
- gG (cable protection/equipment protection)
