004186626

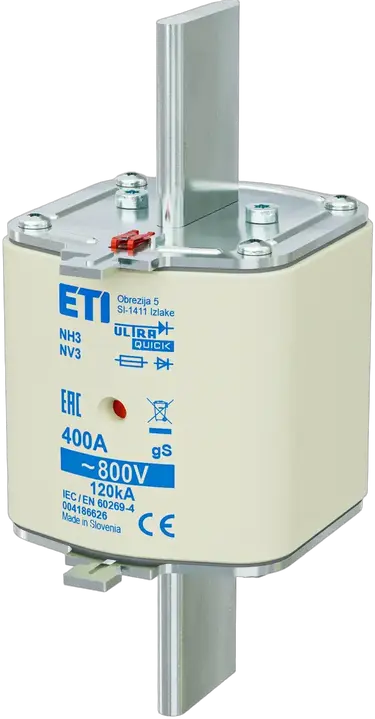

NH3 gS 400A/800V Fuse link

ETI Code:: 004186626
Fuse type:: NH
Size:: NH3
Rated current:: 400 A
Time-Current Characteristic:: gS
Indicator:: Combination fuse status indicator
Rated AC voltage:: 800 V
Breaking capacity AC:: 120 kA
Power dissipation (0,7xIn):: 14.9 W
Power dissipation:: 33 W
Prearcing joule integral (A2s):: 160,000
Operating joule integral (A2s):: 1,500,000
Standards:: IEC 60269-4
Application:: For cable protection on a.c. side of PV inverter

Product

EAN code for a single product: 3838400144638
Net weight of the product: 800 g
Net width: 65 mm
Net height: 150.4 mm
Net depth: 83.4 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838400144645
Basic packaging weight: 2.488 kg
Basic Packaging Dimensions Height: 0.093 m
Basic Packaging Dimensions Width: 0.203 m
Basic Packaging Dimensions Depth: 0.153 m
Basic packaging volume: 0.003 m³

Transport Packaging

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838400144652
Transport packaging weight: 10.302 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.295 m
Transport Packaging Dimensions Depth: 0.235 m
Transport packaging volume: 0.018 m³
Pallet quantity: 624 pcs
Customs tariff: 85361090

Rated switching capacity AC: 120 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3
Rated voltage AC: 800
Power loss at rated current: 33 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 400 A
Utilization category: Other

ETIM Classification – Version 9.0
