004723237

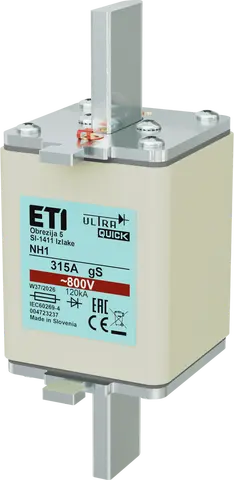

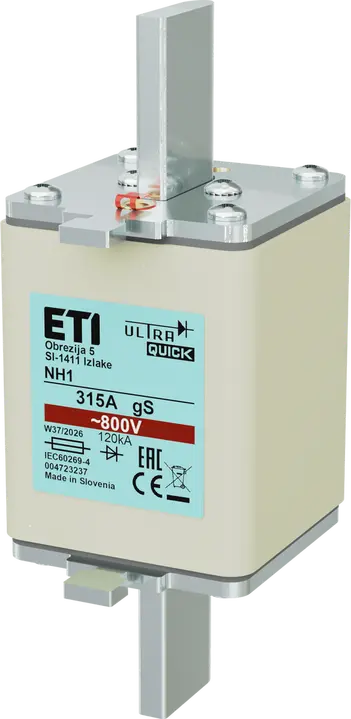

NH1 gS 315A/800V Fuse link
- ETI Code:
- 004723237
- Fuse type:
- NH
- Size:
- NH1
- Rated current:
- 315 A
- Time-Current Characteristic:
- gS
- Indicator:
- Top fuse status indicator
- Rated AC voltage:
- 800 V
- Breaking capacity AC:
- 120 kA
- Power dissipation:
- 28 W
- Prearcing joule integral (A2s):
- 35,000
- Operating joule integral (A2s):
- 490,000
- Standards:
- IEC 60269-4
- Application:
- For cable protection on a.c. side of PV inverter
22 Logistics
Product
- EAN code for a single product
- 3838895837558
- Net weight of the product
- 640 g
- Net width
- 51 mm
- Net height
- 135 mm
- Net depth
- 63 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895837565
- Basic packaging weight
- 1.996 kg
- Basic Packaging Dimensions Height
- 0.079 m
- Basic Packaging Dimensions Width
- 0.17 m
- Basic Packaging Dimensions Depth
- 0.17 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895837572
- Transport packaging weight
- 16.514 kg
- Transport Packaging Dimensions Height
- 0.23 m
- Transport Packaging Dimensions Width
- 0.38 m
- Transport Packaging Dimensions Depth
- 0.38 m
- Transport packaging volume
- 0.033 m³
- Pallet quantity
- 576 pcs
- Customs tariff
- 85361090
8 ETIM
- Rated switching capacity AC
- 120 kA
- Voltage type
- AC
- Fuse construction type according to IEC 60269
- NH1
- Rated voltage AC
- 800
- Power loss at rated current
- 28 W
- Type of fuse status indicator
- Top fuse status indicator
- Rated current
- 315 A
- Utilization category
- Other
ETIM Classification – Version 9.0
3 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
25 Tags
004723237Fuse linkNH1 gS 315A/800VGreen protectNH inverter protectionNH gS800V AC800V ACNH1InternationalFuse links NHPhotovoltaic fuse links NH 800V a.c.Size: NH1Operating joule integral (A2s): 490000Time-Current Characteristic: gSBreaking capacity AC: 120 kAPower dissipation: 28 WPrearcing joule integral (A2s): 35000Fuse type: NHApplication: For cable protection on a.c. side of PV inverterRated AC voltage: 800 V/800 VStandards: IEC 60269-4Rated current: 315 A/315 AIndicator: Top fuse status indicatorFuse link Fuse type: NH Size: NH1 Rated current: 315 A/315 A Rated AC voltage: 800 V/800 V Time-Current Characteristic: gS
