004715231
NH3 SWF 315A/500V Fuse link
- ETI Code:
- 004715231
- Fuse type:
- NH
- Size:
- NH3
- Rated current:
- 315 A
- Time-Current Characteristic:
- gR
- Indicator:
- Top fuse status indicator
- Rated AC voltage:
- 500 V
- Breaking capacity AC:
- 100 kA
- Power dissipation:
- 63 W
- Standards:
- IEC 60269-4
- Application:
- Safe work fuses
22 Logistics
Product
- EAN code for a single product
- 3838895761556
- Net weight of the product
- 800 g
- Net width
- 65 mm
- Net height
- 150.4 mm
- Net depth
- 83.4 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895630524
- Basic packaging weight
- 2.488 kg
- Basic Packaging Dimensions Height
- 0.093 m
- Basic Packaging Dimensions Width
- 0.203 m
- Basic Packaging Dimensions Depth
- 0.153 m
- Basic packaging volume
- 0.003 m³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895630531
- Transport packaging weight
- 10.302 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 624 pcs
- Customs tariff
- 85361090
8 ETIM
- Rated switching capacity AC
- 100 kA
- Voltage type
- AC
- Fuse construction type according to IEC 60269
- NH3
- Rated voltage AC
- 500
- Power loss at rated current
- 63 W
- Type of fuse status indicator
- Top fuse status indicator
- Rated current
- 315 A
- Utilization category
- gR (general purpose semiconductor protection)
ETIM Classification – Version 9.0
3 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
23 Tags
004715231Fuse linkNH3 SWF 315A/500VSpecial fusesSafe work fusesfuse links SWFfuse links SWFSize 3Standard indicatorInternationalFuse links NHSafe work fusesSize: NH3Time-Current Characteristic: gRBreaking capacity AC: 100 kAPower dissipation: 63 WFuse type: NHApplication: Safe work fusesRated AC voltage: 500 V/500 VStandards: IEC 60269-4Rated current: 315 A/315 AIndicator: Top fuse status indicatorFuse link NV Fuse type: NH Size: NH3 Rated current: 315 A/315 A Rated AC voltage: 500 V/500 V Time-Current Characteristic: gR

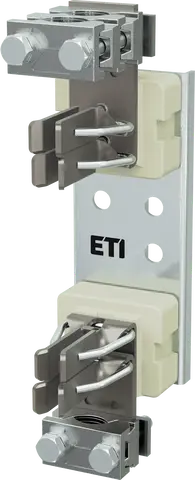

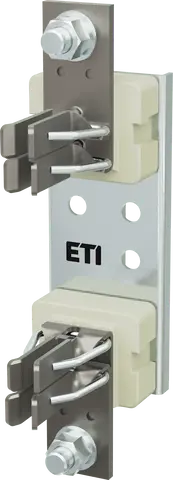

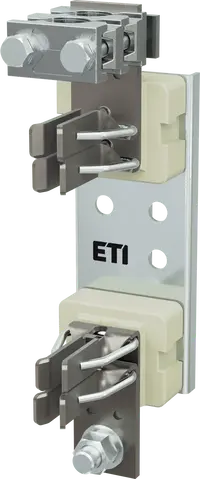

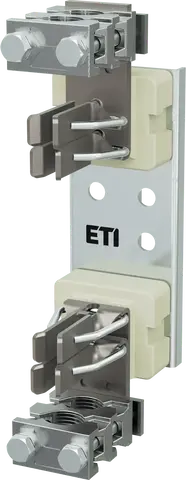

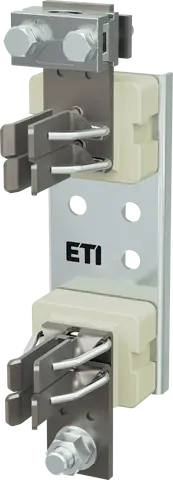

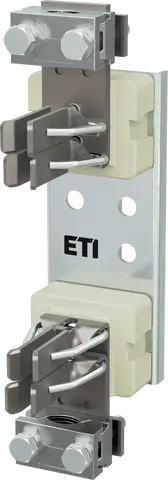

Accessories 12 All Accessories
