Our industrial plugs and sockets are designed for connecting electrical devices and consumers to low voltage power sources across a wide range of applications.

001105462

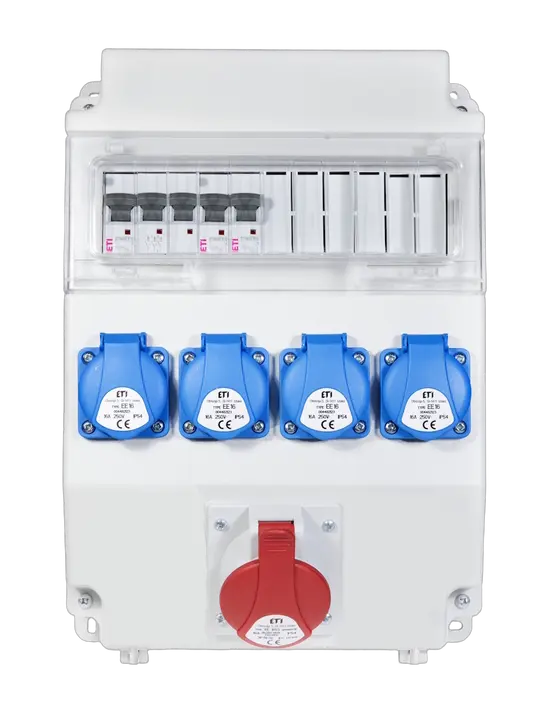

Image of EDS11 4/1 16 B+C

EDS11 4/1 16 B+C Assemblied distribution box

ETI Code:: 001105462
Number of poles:: 3+N+PE
Rated current:: 40 A
Type: socket/plug:: 1x16A(5P), 4xGROUND PIN
Number of modules:: 11
IP rating:: IP54
Number of MCBs applied:: 3

Technical data catalog

Product

Net weight of the product: 3.55 kg
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400178992
Transport packaging weight: 3.6 kg
Transport Packaging Dimensions Height: 330 mm
Transport Packaging Dimensions Width: 250 mm
Transport Packaging Dimensions Depth: 170 mm
Transport packaging volume: 14.025 dm³
Pallet quantity: 45 pcs
Customs tariff: 85371098

Diameter cable entry: M32
CEE socket outlet 16 A: 1x16A5p400V
Leakage current type: A
Width: 241 mm
Degree of protection (IP): IP54
Number of miniature circuit breakers (MCB): 3
Number of poles mains connection: 5
CEE socket outlet 32 A: None
Housing material: Plastic
Depth: 163 mm
Colour: Grey
Handling: Wall mounting
Earth leakage switch: None
Height: 343 mm
Type of mains connection: Other

ETIM Classification – Version 9.0

001105462 Assemblied distribution box EDS11 4/1 16 B+C ETICEE Industrial plug-in equipment Distribution boxes EDS Distribution boxes EDS EDS 11 EDS 11 IP54 International Industrial plugs, sockets and industrial distribution boxes ETICEE Industrial distribution boxes EDS Type: socket/plug: 1x16A(5P), 4xGROUND PIN Number of modules: 11 Number of poles: 3+N+PE IP rating: IP54 Number of MCBs applied: 3 Rated current: 40 A/40 A Assemblied distribution box TOWAR Type: socket/plug: 1x16A(5P), 4xGROUND PIN Number of poles: 3+N+PE Rated current: 40 A/40 A Type: socket/plug: 1x16A(5P), 4xGROUND PIN Number of modules: 11 IP rating: IP54 IP rating: IP54
