Our industrial plugs and sockets are designed for connecting electrical devices and consumers to low voltage power sources across a wide range of applications.

004483441

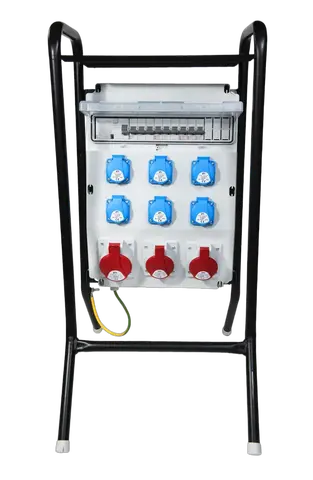

Image of EDS16S RCD 6S/3 16/32 C

EDS16S RCD 6S/3 16/32 C Assemblied distribution box

ETI Code:: 004483441
Rated AC voltage:: 400 V
Rated DC voltage:: 400 V
Number of poles:: 3+N+PE
Rated current:: 63 A
Type: socket/plug:: 2x16A(5p), 1x32A(5p), 6xSCHUKO
Number of modules:: 16
IP rating:: IP54
Number of MCBs applied:: 3xC16/1, 1xC16/3, 1xC32/3
Additional devices:: with RCD

Technical data catalog

Product

Net weight of the product: 10.8 kg
Stock unit of measure: pcs

Transport Packaging

Transport packaging weight: 10.8 kg
Transport packaging volume: 174.824 dm³
Transport packaging quantity: 1 pcs
Customs tariff: 85371098
Transport Packaging Dimensions Height: 820 mm
Transport Packaging Dimensions Width: 410 mm
Transport Packaging Dimensions Depth: 520 mm
EAN code for a transport packaging: 3838400124869
Pallet quantity: 5 pcs

Diameter cable entry: M40
CEE socket outlet 16 A: 2x16A5p400V
Leakage current type: A
Width: 410 mm
Protection: Overcurrent switch
Degree of protection (IP): IP54
Number of miniature circuit breakers (MCB): 5
Number of poles mains connection: 5
CEE socket outlet 32 A: 1x32A5p400V
Power supply/connection possibility: 1 cable (branch line)
Housing material: Plastic
Depth: 520 mm
Number of socket outlets with protective contact CEE 7/3 (type F): 6
Colour: Grey
Handling: Portable
Earth leakage switch: Earth leakage switch with IFN 30 mA (standard)
Height: 820 mm
Type of mains connection: None

ETIM Classification – Version 9.0
