004482050

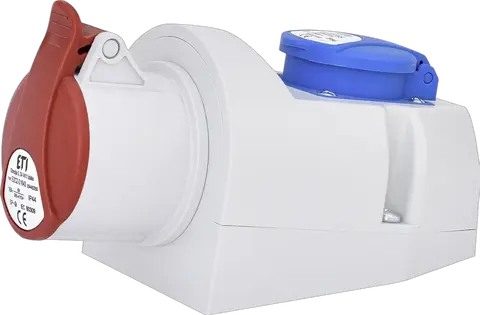

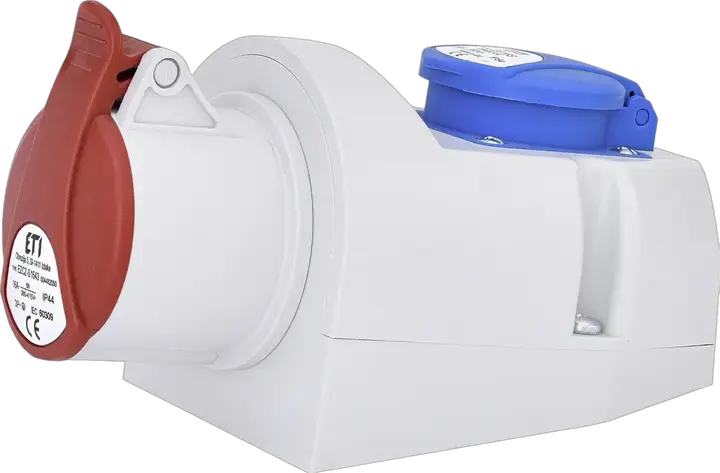

EZCZ -S 1643 CEE Socket
- ETI Code:
- 004482050
- Function:
- Combinated socket IP44
- Rated AC voltage:
- 400/230 V
- Height:
- 113 mm
- Width:
- 90 mm
- Color:
- Grey
- Catalogue Group:
- Sockets IP44
- Rated current:
- 16 A
- Type: socket/plug:
- Combinated sockets
- Number of poles:
- 3+E
- IP rating:
- IP44
4 Documents
15 Logistics
Product
- Net weight of the product
- 0.335 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895674139
- Basic packaging weight
- 0.34 kg
- Basic packaging volume
- 1.58 dm³
Transport Packaging
- Transport packaging quantity
- 6 pcs
- EAN code for a transport packaging
- 3838895674146
- Transport packaging weight
- 2.04 kg
- Transport Packaging Dimensions Height
- 220 mm
- Transport Packaging Dimensions Width
- 240 mm
- Transport Packaging Dimensions Depth
- 180 mm
- Transport packaging volume
- 9.504 dm³
- Pallet quantity
- 630 pcs
- Customs tariff
- 85366990
10 ETIM
- CEE socket outlet 16 A
- 3x16A xp xxxV
- Width
- 90 mm
- Degree of protection (IP)
- IP44
- Housing material
- Plastic
- Depth
- 182 mm
- Number of socket outlets with protective contact CEE 7/3 (type F)
- 1
- Colour
- Grey
- Handling
- Wall mounting
- Height
- 113 mm
- Other fixtures and/or empty locations
- 1
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
17 Tags
004482050CEE SocketEZCZ -S 1643ETICEEIndustrial plug-in equipmentIP44 seriesIP44 seriesCombinated sockets IP44Combinated sockets IP44InternationalIndustrial plugs, sockets and industrial distribution boxes ETICEEIP44, IP54-seriesType: socket/plug: Combinated socketsNumber of poles: 3+EIP rating: IP44Rated current: 16 A/16 ACEE Socket Type: socket/plug: Combinated sockets Rated current: 16 A/16 A Type: socket/plug: Combinated sockets Number of poles: 3+E IP rating: IP44 IP rating: IP44
