Spring clamp terminals

Introduction

Engineered for safety and efficiency, our spring-type terminals provide a constant and permanent clamping pressure on electrical conductors, ensuring an exceptionally secure connection that is highly resistant to vibrations. Designed for installation on standard TH35 rails, this series offers a comprehensive wiring solution for a wide range of industrial applications.

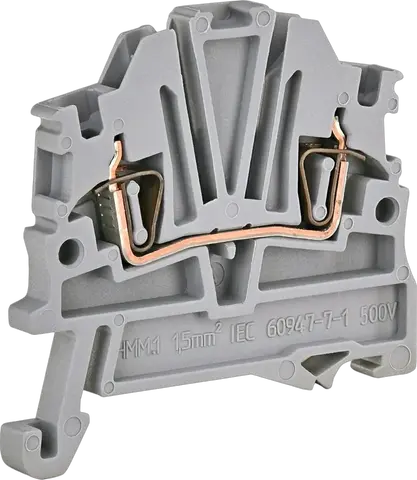

ESP-HMM.1

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Grey
Rated cross section: 1.5 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 17.5 mm²
Connectable conductor cross section solid-core: 2-25 mm²
Cross connection: 1
End section needed: 1

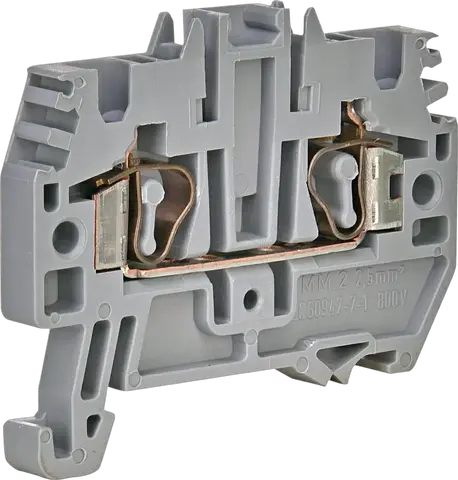

ESP-HMM.2

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Grey
Rated cross section: 2.5 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 24 mm²
Connectable conductor cross section solid-core: 0.2-4 mm²
Cross connection: 1
End section needed: 1

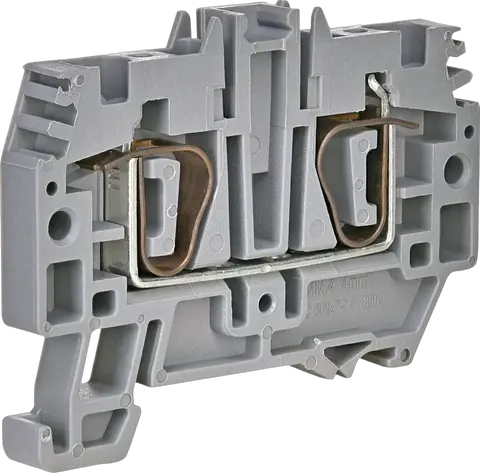

ESP-HMM.4

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Grey
Rated cross section: 4 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 32 mm²
Connectable conductor cross section solid-core: 2-6 mm²
Cross connection: 1
End section needed: 1

ESP-HMM.6

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Grey
Rated cross section: 6 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 41 mm²
Connectable conductor cross section solid-core: 2-10 mm²
Cross connection: 1
End section needed: 1

ESP-HMM.10

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Grey
Rated cross section: 10 mm²
Rated impulse withstand voltage Uimp: 12 kV
Max current with rated cross-section: 57 mm²
Cross connection: 1
End section needed: 1

ESP-HMM.16

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Grey
Rated cross section: 16 mm²
Rated impulse withstand voltage Uimp: 12 kV
Max current with rated cross-section: 76 mm²
Cross connection: 1
End section needed: 1

ESP-HMT.2/1+2/PT

Class name: End cover
Color: Grey

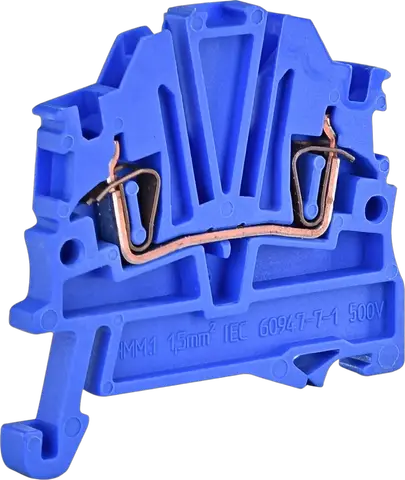

ESP-HMM.1B

Class name: Neutral terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 1 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 17.5 mm²
Connectable conductor cross section solid-core: 2-4 mm²
Cross connection: 1
End section needed: 1

ESP-HMM.2B

Class name: Neutral terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 2 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 24 mm²
Connectable conductor cross section solid-core: 2-4 mm²
Cross connection: 1
End section needed: 1

ESP-HMM.4B

Class name: Neutral terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 4 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 32 mm²
Connectable conductor cross section solid-core: 2-6 mm²
Cross connection: 1
End section needed: 1

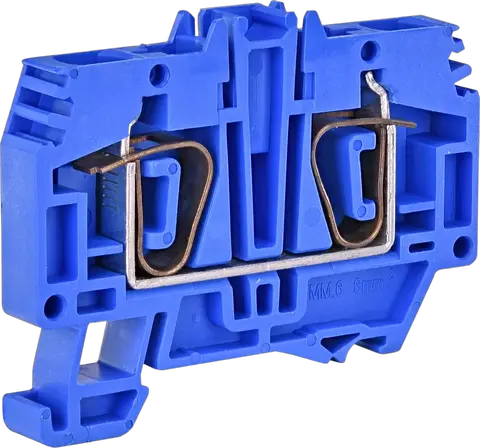

ESP-HMM.6B

Class name: Neutral terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 6 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 41 mm²
Connectable conductor cross section solid-core: 2-10 mm²
Cross connection: 1
End section needed: 1

ESP-HMM.10B

Class name: Neutral terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 10 mm²
Rated impulse withstand voltage Uimp: 12 kV
Max current with rated cross-section: 57 mm²
Cross connection: 1
End section needed: 1

ESP-HMM.16B

Class name: Neutral terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 16 mm²
Rated impulse withstand voltage Uimp: 12 kV
Max current with rated cross-section: 76 mm²
Cross connection: 1
End section needed: 1

ESP-HMR.16

Class name: Terminal block
Type description: ES Spring Clamp Terminal Blocks
Level: Double
Color: Grey
Rated cross section: 16 mm²
Rated impulse withstand voltage Uimp: 12 kV
Max current with rated cross-section: 76 mm²
Cross connection: 1
End section needed: 1

ESP-HMR.16/D

Class name: Terminal block
Type description: ES Spring Clamp Terminal Blocks
Level: Double
Color: Grey
Rated cross section: 16 mm²
Rated impulse withstand voltage Uimp: 12 kV
Max current with rated cross-section: 76 mm²
Cross connection: 1
End section needed: 1

ESP2-HMD.1

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Double
Color: Grey
Rated cross section: 1.5 mm²
Rated impulse withstand voltage Uimp: 6 kV
Max current with rated cross-section: 17.5 mm²
Connectable conductor cross section solid-core: 2-25 mm²
Cross connection: 1
End section needed: 1

ESP2-HMD.2N

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Double
Color: Grey
Rated cross section: 2.5 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 24 mm²
Connectable conductor cross section solid-core: 2-25 mm²
Cross connection: 1
End section needed: 1

ESP3-HLD.2

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Triple
Color: Grey
Rated cross section: 2.5 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 24 mm²
Connectable conductor cross section solid-core: 2-25 mm²
Cross connection: 1
End section needed: 1

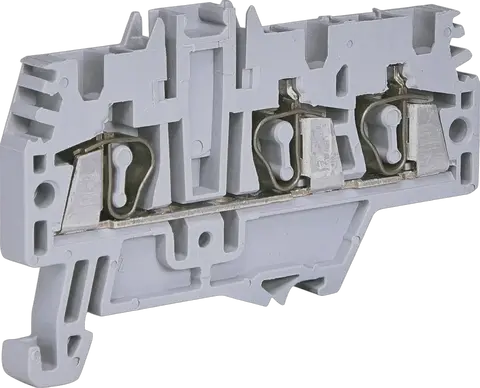

ESP-HMM.2/1+2

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Grey
Rated cross section: 2 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 24 mm²
Connectable conductor cross section solid-core: 2-4 mm²
Cross connection: 1
End section needed: 1

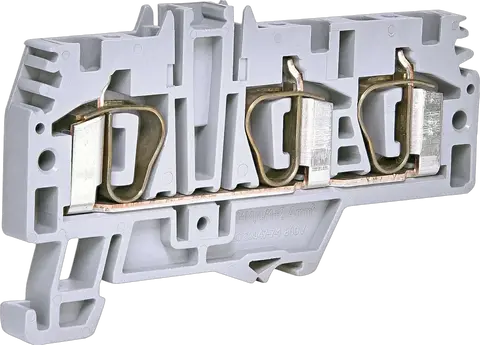

ESP-HMM.4/1+2

Class name: Line-up terminal
Type description: ES Spring Clamp Terminal Blocks
Level: Single
Color: Grey
Rated cross section: 2 mm²
Rated impulse withstand voltage Uimp: 8 kV
Max current with rated cross-section: 32 mm²
Connectable conductor cross section solid-core: 2-6 mm²
Cross connection: 1
End section needed: 1
