004805507

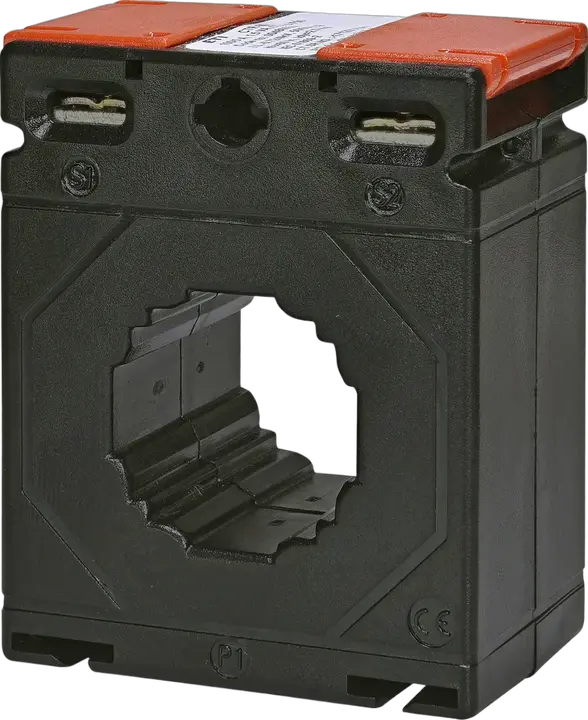

CTR-30 150/5 CL.0,5 Current transformer
- ETI Code:
- 004805507
- Power:
- 3.75 VA
- Primary current:
- 150 A
- Secondary Current:
- 5 A
- Accuracy Class:
- 0,5
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.365 kg
- Net width
- 63.3 mm
- Net height
- 78.6 mm
- Net depth
- 40 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895817208
- Basic packaging weight
- 0.37 kg
- Basic packaging volume
- 0.37 dm³
Transport Packaging
- Transport packaging quantity
- 63 pcs
- EAN code for a transport packaging
- 3838895817215
- Transport packaging weight
- 23.31 kg
- Transport packaging volume
- 23.31 dm³
- Pallet quantity
- 2,520 pcs
- Customs tariff
- 85043129
7 ETIM
- Rated secondary current
- 5 A
- Model
- Attachable current transformer
- Rated primary current
- 150 A
- Rated secondary apparent power
- 3.75 VA
- Accuracy class
- 0.5
- Secondary connection
- Screw connection
- Opening diameter
- 30.5 mm
ETIM Classification – Version 9.0
