002159320

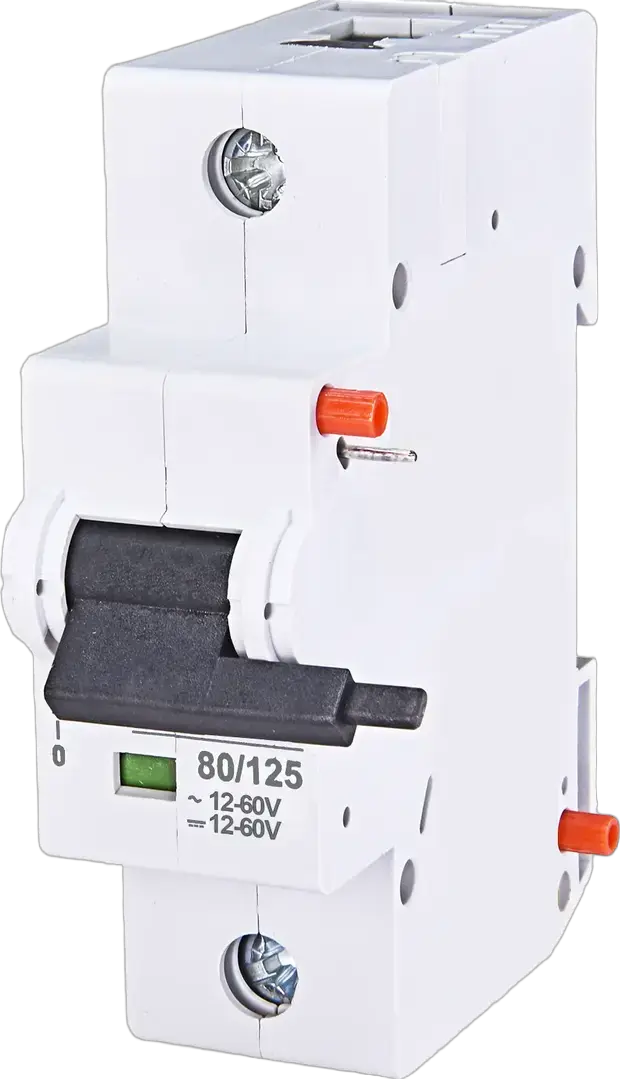

DA ETIMAT 80/125 12-60V AC/DC Shunt trip release
- ETI Code:
- 002159320
- Function accessories:
- Shunt trip release
- Function:
- Shunt trip release
- To use with:
- ETIMAT 10 80-125 A
5 Documents
21 Logistics
Product
- Net weight of the product
- 175 g
- Net width
- 41.1 mm
- Net height
- 90.8 mm
- Net depth
- 76.58 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895826583
- Basic packaging weight
- 0.191 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.038 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 54 pcs
- EAN code for a transport packaging
- 3838895826590
- Transport packaging weight
- 10.664 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 2,808 pcs
- Customs tariff
- 85389099
11 ETIM
- Voltage type
- AC/DC
- Voltage type for actuating
- AC/DC
- Device fitting
- Miniature circuit breaker (MCB)
- Rated voltage
- 24 V
- Function
- Remote release
- Type of electric connection
- Screw connection
- Width in number of modular spacings
- 1.5
- Rated control supply voltage AC 60 Hz(Min)
- 12 V
- Rated control supply voltage AC 50 Hz(Min)
- 12 V
- Rated control supply voltage AC 60 Hz(Max)
- 60 V
- Rated control supply voltage AC 50 Hz(Max)
- 60 V
ETIM Classification – Version 9.0
