001901033

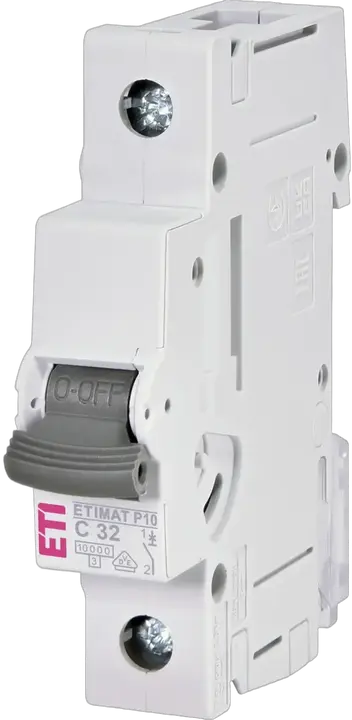

ETIMAT P10 1p C32 Miniature circuit breaker
- ETI Code:
- 001901033
- Application:
- EN/IEC 60898
- Rated current:
- 32 A
- Tripping characteristic:
- C
- Number of poles:
- 1
- Short circuit capacity:
- 10 kA
- Voltage type:
- AC
- Rated impulse withstand voltage Uimp:
- 6 kV
- Rated AC voltage:
- 240 V
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- EN/IEC 60898
- Function:
- MCB
5 Documents
22 Logistics
Product
- EAN code for a single product
- 3838895951940
- Net weight of the product
- 105 g
- Net width
- 17.8 mm
- Net height
- 89 mm
- Net depth
- 74.74 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 12 pcs
- EAN code for a basic packaging
- 3838895951957
- Basic packaging weight
- 1.316 kg
- Basic Packaging Dimensions Height
- 79 mm
- Basic Packaging Dimensions Width
- 91 mm
- Basic Packaging Dimensions Depth
- 220 mm
- Basic packaging volume
- 1.582 dm³
Transport Packaging
- Transport packaging quantity
- 108 pcs
- EAN code for a transport packaging
- 3838895951964
- Transport packaging weight
- 12.197 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 5,616 pcs
- Customs tariff
- 85362010
28 ETIM
- Additional equipment possible
- Yes
- Rated insulation voltage Ui
- 500 V
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 10 kA
- Built-in depth
- 70 mm
- Voltage type
- AC
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 10 kA
- Rated impulse withstand voltage Uimp
- 6 kV
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Over voltage category
- 3
- Number of poles (total)
- 1
- Pollution degree
- 2
- Number of protected poles
- 1
- Rated voltage
- 240 V
- Current limiting class
- 3
- Rated current
- 32 A
- Flush-mounted installation
- Yes
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10 kA
- Width in number of modular spacings
- 1
- Frequency(Min)
- 50 Hz
- Ambient temperature during operating(Min)
- -40 °C
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 25 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
- Frequency(Max)
- 60
- Ambient temperature during operating(Max)
- 70 °C
ETIM Classification – Version 9.0
