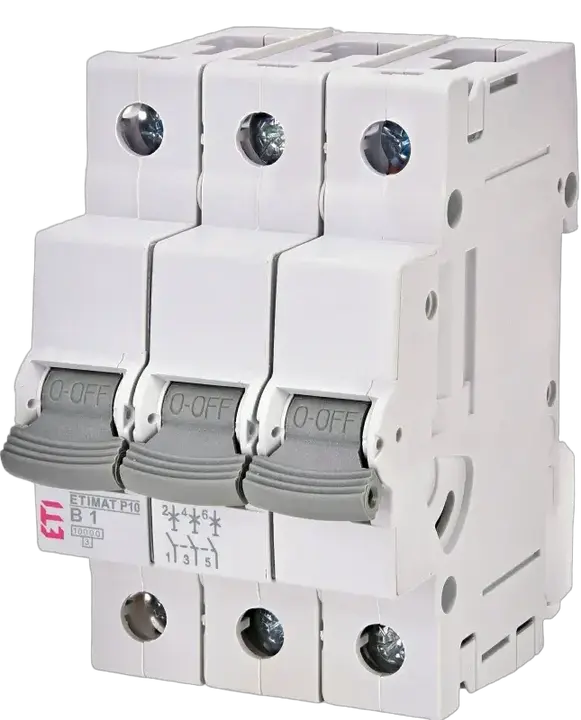

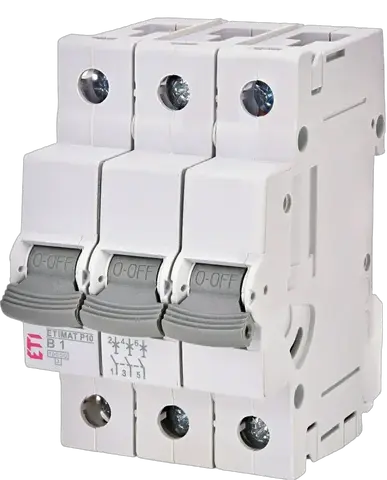

ETIMAT P10 3p B16 15kA Miniature circuit breaker
- ETI Code:
- 001901810
- Application:
- EN/IEC 60898-1; EN/IEC 60947-2
- Special Environment:
- EN/IEC 60947-2
- Rated current:
- 16 A
- Tripping characteristic:
- B
- Number of poles:
- 3
- Short circuit capacity:
- 15 kA
- Voltage type:
- AC
- Rated impulse withstand voltage Uimp:
- 6 kV
- Rated AC voltage:
- 415 V
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- EN/IEC 60898-1; EN/IEC 60947-2
- Function:
- MCB
2 Documents
22 Logistics
Product
- EAN code for a single product
- 3838400127624
- Net weight of the product
- 277 g
- Net width
- 91 mm
- Net height
- 79 mm
- Net depth
- 220 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 4 pcs
- EAN code for a basic packaging
- 3838400127631
- Basic packaging weight
- 1.16 kg
- Basic Packaging Dimensions Height
- 79 mm
- Basic Packaging Dimensions Width
- 91 mm
- Basic Packaging Dimensions Depth
- 220 mm
- Basic packaging volume
- 1.58 dm³
Transport Packaging
- Transport packaging quantity
- 36 pcs
- EAN code for a transport packaging
- 3838400127648
- Transport packaging weight
- 10.83 kg
- Transport Packaging Dimensions Height
- 253 mm
- Transport Packaging Dimensions Width
- 233 mm
- Transport Packaging Dimensions Depth
- 293 mm
- Transport packaging volume
- 17.272 dm³
- Pallet quantity
- 1,872 pcs
- Customs tariff
- 85362010
28 ETIM
- Additional equipment possible
- Yes
- Rated insulation voltage Ui
- 500 V
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 15 kA
- Built-in depth
- 70 mm
- Voltage type
- AC
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 15 kA
- Rated impulse withstand voltage Uimp
- 6 kV
- Degree of protection (IP)
- IP20
- Release characteristic
- B
- Over voltage category
- 3
- Number of poles (total)
- 3
- Pollution degree
- 2
- Number of protected poles
- 3
- Rated voltage
- 415 V
- Current limiting class
- 3
- Rated current
- 16 A
- Flush-mounted installation
- Yes
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10 kA
- Width in number of modular spacings
- 3
- Frequency(Min)
- 50 Hz
- Ambient temperature during operating(Min)
- -60 °C
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 25 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
- Frequency(Max)
- 60
- Ambient temperature during operating(Max)
- 70 °C
ETIM Classification – Version 9.0
25 Tags
001901810Miniature circuit breakerETIMAT P10 3p B16 15kAASTIMCBETIMAT P10 15kANormal3pBInternationalModular current and residual protective devices ASTIMiniature circuit breakers MCB and accessories ETIMATMiniature circuit breakers MCBRated impulse withstand voltage Uimp: 6 kVVoltage type: ACTripping characteristic: BFunction: MCBNumber of poles: 3Short circuit capacity: 15 kA/15 kARated cross section: 1 mm²-25 mm²Rated AC voltage: 415 V/415 VStandards: EN/IEC 60898-1; EN/IEC 60947-2Rated current: 16 A/16 ARated Frequency: 50 Hz/60 HzMiniature circuit breaker Rated current: 16 A/16 A Tripping characteristic: B Number of poles: 3 Short circuit capacity: 15 kA/15 kA Voltage type: AC Rated cross section: 1 mm²-25 mm² Function: MCB
