262024101

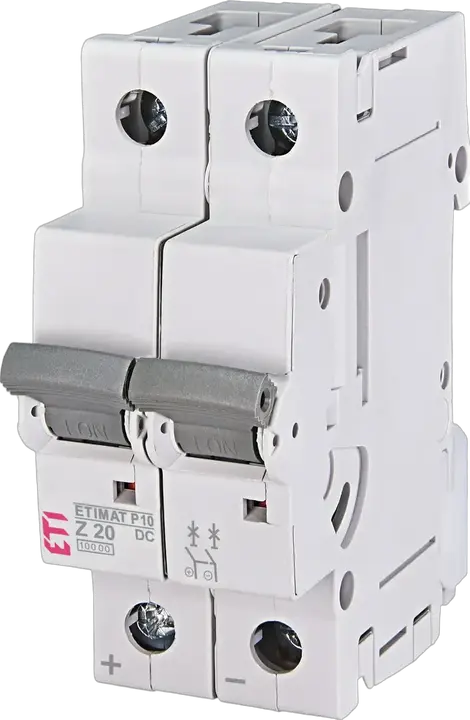

ETIMAT P10-DC 2p Z20 Miniature circuit breaker
- ETI Code:
- 262024101
- Application:
- IEC/EN 60898-2
- Rated current:
- 20 A
- Tripping characteristic:
- Z
- Number of poles:
- 2
- Short circuit capacity:
- 10 kA
- Voltage type:
- DC
- Rated AC voltage:
- 440 V
- Rated DC voltage:
- 440 V
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 60898-2
- Function:
- MCB
4 Documents
22 Logistics
Product
- EAN code for a single product
- 3838895798750
- Net weight of the product
- 240 g
- Net width
- 36 mm
- Net height
- 90.1 mm
- Net depth
- 74.47 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 6 pcs
- EAN code for a basic packaging
- 3838895798767
- Basic packaging weight
- 1.464 kg
- Basic Packaging Dimensions Height
- 81 mm
- Basic Packaging Dimensions Width
- 222 mm
- Basic Packaging Dimensions Depth
- 103 mm
- Basic packaging volume
- 1.852 dm³
Transport Packaging
- Transport packaging quantity
- 30 pcs
- EAN code for a transport packaging
- 3838895798774
- Transport packaging weight
- 7.55 kg
- Transport Packaging Dimensions Height
- 91 mm
- Transport Packaging Dimensions Width
- 531 mm
- Transport Packaging Dimensions Depth
- 233 mm
- Transport packaging volume
- 11.259 dm³
- Pallet quantity
- 2,520 pcs
- Customs tariff
- 85362010
