270403103
Obsolete

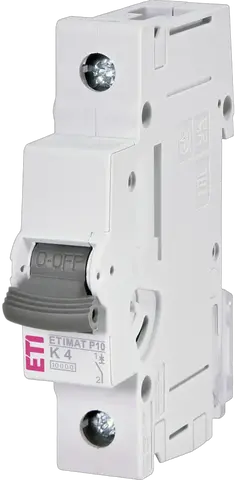

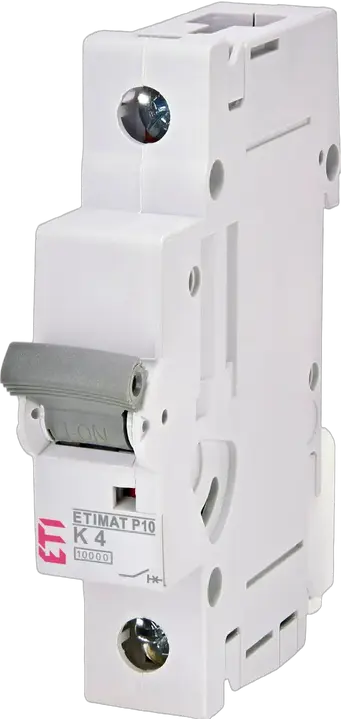

*ETIMAT P10 1p K4 Miniature circuit breaker
- ETI Code:
- 270403103
- Catalogue Group:
- ETIMAT P10 Miniature circuit breakers 10kA
- Application:
- IEC/EN 60898-1, IEC 60947-2
- Rated current:
- 4 A
- Tripping characteristic:
- K
- Number of poles:
- 1
- Short circuit capacity:
- 10 kA
- Voltage type:
- AC
- Rated impulse withstand voltage Uimp:
- 6 kV
- Rated AC voltage:
- 230/400 V
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 60898-1, IEC 60947-2
- Function:
- MCB
5 Documents
22 Logistics
Product
- EAN code for a single product
- 3838895690030
- Net weight of the product
- 118.83 g
- Net width
- 18 mm
- Net height
- 90.1 mm
- Net depth
- 74.47 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 12 pcs
- EAN code for a basic packaging
- 3838895690047
- Basic packaging weight
- 1.482 kg
- Basic Packaging Dimensions Height
- 81 mm
- Basic Packaging Dimensions Width
- 222 mm
- Basic Packaging Dimensions Depth
- 103 mm
- Basic packaging volume
- 1.852 dm³
Transport Packaging
- Transport packaging quantity
- 60 pcs
- EAN code for a transport packaging
- 3838895690054
- Transport packaging weight
- 7.61 kg
- Transport Packaging Dimensions Height
- 91 mm
- Transport Packaging Dimensions Width
- 531 mm
- Transport Packaging Dimensions Depth
- 233 mm
- Transport packaging volume
- 11.259 dm³
- Pallet quantity
- 5,040 pcs
- Customs tariff
- 85362010
4 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
25 Tags
270403103Miniature circuit breaker*ETIMAT P10 1p K4ASTIMCBETIMAT P10 oldNormal1pKInternationalModular current and residual protective devices ASTIMiniature circuit breakers MCB and accessories ETIMATMiniature circuit breakers MCBRated impulse withstand voltage Uimp: 6 kVVoltage type: ACTripping characteristic: KFunction: MCBNumber of poles: 1Short circuit capacity: 10 kA/10 kARated cross section: 1 mm²-25 mm²Rated AC voltage: 230 V/400 VStandards: IEC 60947-2, IEC/EN 60898-1Rated current: 4 A/4 ARated Frequency: 50 Hz/60 HzMiniature circuit breaker ETP10 Rated current: 4 A/4 A Tripping characteristic: K Number of poles: 1 Short circuit capacity: 10 kA/10 kA Voltage type: AC Rated cross section: 1 mm²-25 mm² Function: MCB
