004648004

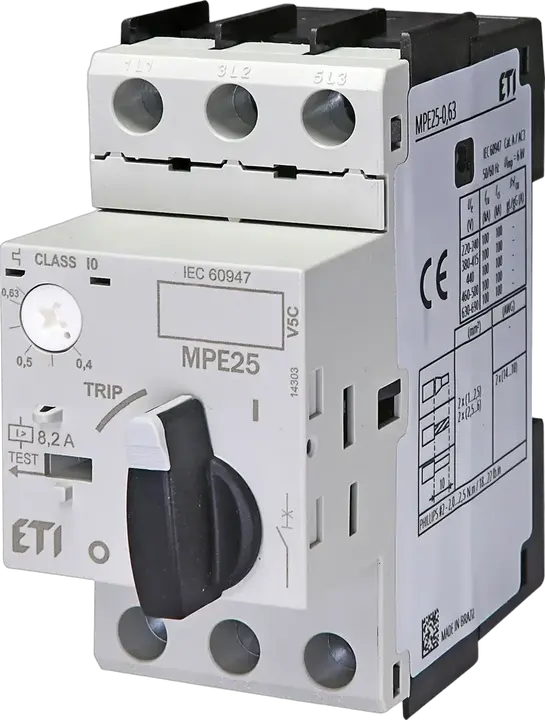

MPE25-0,63 Mot.protec.circuit breaker
- ETI Code:
- 004648004
- Setting overl release Ir:
- 0.4/0.63 A
- Number of poles:
- 3
- IP rating:
- IP20
- Rated operational voltage (AC):
- 690 V
- Current setting range:
- 0.4/0.63 A
- Short-circuit release Irm:
- 8.2 A
- Catalogue Group:
- MPE
- Max. rated operational voltage (AC):
- 690 V
16 Logistics
Product
- Net weight of the product
- 0.32 kg
- Net width
- 44.8 mm
- Net height
- 97.2 mm
- Net depth
- 97.48 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7890355009574
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355188279
- Transport packaging weight
- 0.36 kg
- Transport Packaging Dimensions Height
- 52 mm
- Transport Packaging Dimensions Width
- 105 mm
- Transport Packaging Dimensions Depth
- 105 mm
- Transport packaging volume
- 0.573 dm³
- Pallet quantity
- 1,800 pcs
- Customs tariff
- 85362010
16 ETIM
- Rated operation power at AC-3, 230 V
- 0.12 kW
- Rated permanent current Iu
- 0.63 A
- Rated short-circuit breaking capacity lcu at 400 V, AC
- 100 kA
- Degree of protection (IP)
- IP20
- Type of electrical connection of main circuit
- Frame clamp
- Phase failure sensitive
- Yes
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-3, 400 V
- 0.12 kW
- Switch off technique
- Thermomagnetic
- Overload release current setting(Min)
- 0.4 A
- Adjustment range undelayed short-circuit release(Min)
- 8.1 A
- Rated operating voltage(Min)
- 400 V
- Rated operating voltage(Max)
- 690 V
- Overload release current setting(Max)
- 0.63 A
- Adjustment range undelayed short-circuit release(Max)
- 8.1 A
ETIM Classification – Version 9.0
