002921132

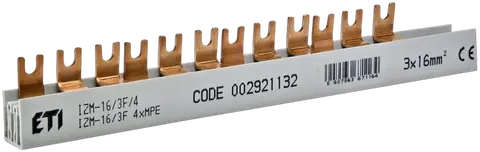

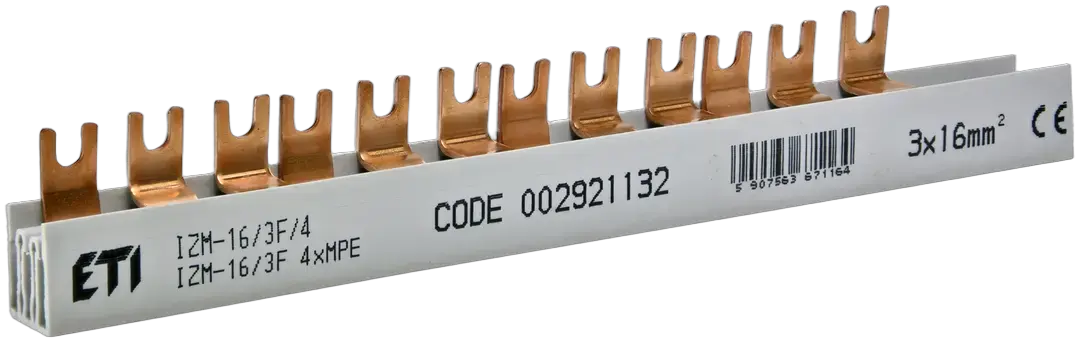

IZM-16/3F 4xMPE Insulated busbar
- ETI Code:
- 002921132
- To use with:

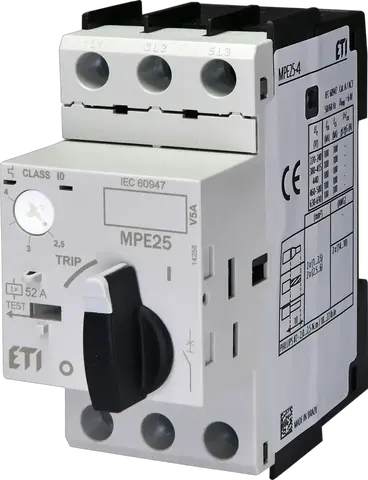

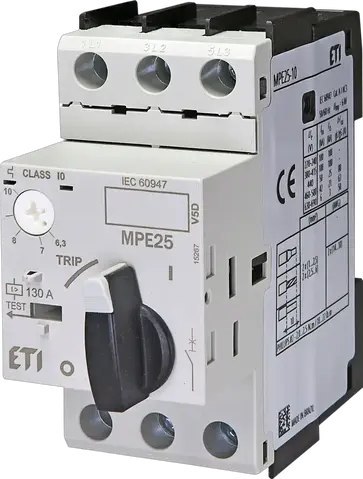

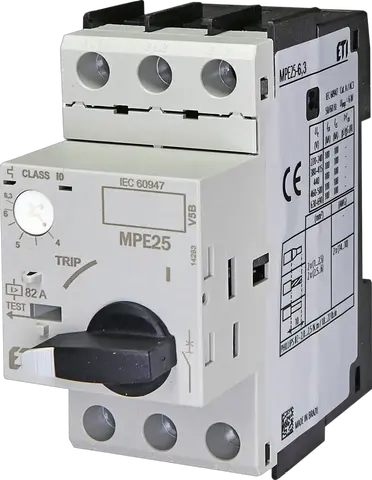

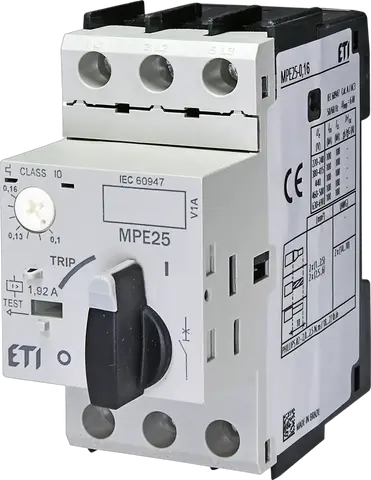

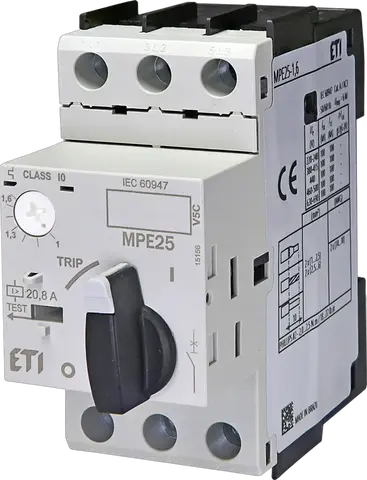

- MPE 25, MS26
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 100 A
- Rated cross section:
- 16 mm²
- Lenght in modules:
- 1x12
- No. Of Phases:
- 3
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
15 Logistics
Product
- Net weight of the product
- 155 g
- Net width
- 200 mm
- Net height
- 32.8 mm
- Net depth
- 16.49 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5907563671164
- Basic packaging weight
- 0.12 kg
- Basic packaging volume
- 0.086 dm³
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 5907563671171
- Transport packaging weight
- 2.4 kg
- Transport packaging volume
- 0.2 dm³
- Pallet quantity
- 6,660 pcs
- Customs tariff
- 85389099
9 ETIM
- Cross section
- 16 mm²
- Number of phases
- 3
- Rated permanent current Iu
- 100 A
- Suitable for number of devices
- 4
- Module width
- 15 mm
- Length
- 210 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
ETIM Classification – Version 9.0
