002921017

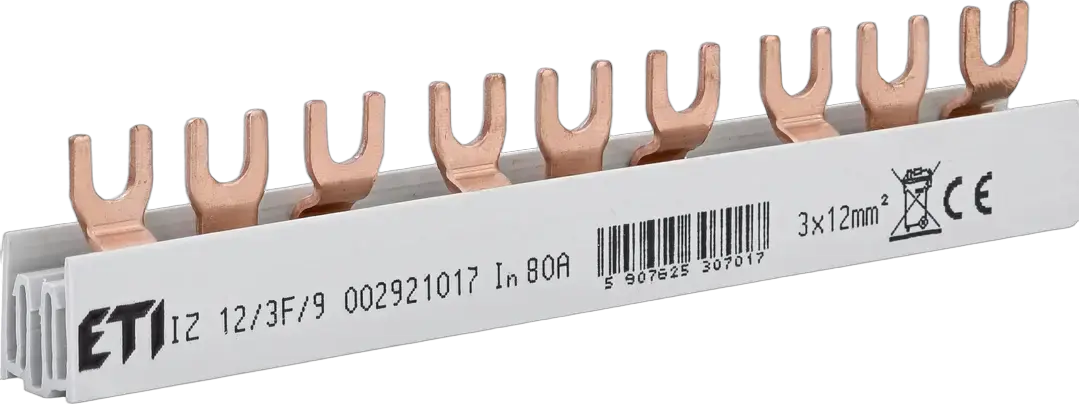

IZ12/3F/9 Insulated busbar
- ETI Code:
- 002921017
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Number of poles:
- 3
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 80 A
- Rated cross section:
- 12 mm²
- Lenght in modules:
- 1x9
- No. Of Phases:
- 3
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
16 Logistics
Product
- EAN code for a single product
- 5907625307017
- Net weight of the product
- 0.27 kg
- Net width
- 165.4 mm
- Net height
- 33.6 mm
- Net depth
- 20.98 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 20 pcs
- EAN code for a basic packaging
- 5907625307079
- Basic packaging weight
- 1.664 kg
- Basic packaging volume
- 1.488 dm³
Transport Packaging
- Transport packaging quantity
- 240 pcs
- EAN code for a transport packaging
- 5907625307130
- Transport packaging weight
- 19.968 kg
- Transport packaging volume
- 17.856 dm³
- Pallet quantity
- 9,600 pcs
- Customs tariff
- 85389099
7 ETIM
- Cross section
- 12 mm²
- Number of phases
- 3
- Rated permanent current Iu
- 80 A
- Module width
- 17.8 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
ETIM Classification – Version 9.0
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
23 Tags
002921017Insulated busbarIZ12/3F/9ETIBOXAccessoriesSection railsSection railsFork typeFork typeInternationalEnclosures, distribution boards, equipment ETIBOXSection railsBusbar type: FORKFunction: Section railsType accessories: Section railsNumber of poles: 3Lenght in modules: 1x9Rated cross section: 12 mm²-12 mm²Rated AC voltage: 500 V/500 VRated DC voltage: 500 V/500 VRated current: 80 A/80 ANo. Of Phases: 3Insulated busbar TOWAR Function: Section rails Busbar type: FORK
Accessories 285 All Accessories
Similar Products 152 All Products
002911101
PE 2/6
- Class name
- Connection clamp
- Number of poles
- 3+N
- Function
- Terminal for protective conductor
- Busbar type
- Rated current
002911102
PE 2/8
- Class name
- Connection clamp
- Number of poles
- 3+N
- Function
- Terminal for protective conductor
- Busbar type
- Rated current
002911103
PE 2/12
- Class name
- Connection clamp
- Number of poles
- 3+N
- Function
- Terminal for protective conductor
- Busbar type
- Rated current
002911104
PE 2/18
- Class name
- Connection clamp
- Number of poles
- 3+N
- Function
- Terminal for protective conductor
- Busbar type
- Rated current
002921018
IZ12/1F/12
- Class name
- Insulated busbar
- Number of poles
- Function
- Section rails
- Busbar type
- FORK
- Rated current
- 80
002921019
Z-12/3F
- Class name
- End cover
- Number of poles
- 3
- Function
- Section rails
- Busbar type
- FORK
- Rated current
002921020

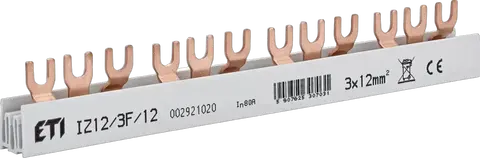

IZ12/3F/12
- Class name
- Insulated busbar
- Number of poles
- 3
- Function
- Section rails
- Busbar type
- FORK
- Rated current
- 80
002921022
IZ12/3F/18
- Class name
- Insulated busbar
- Number of poles
- 3
- Function
- Section rails
- Busbar type
- FORK
- Rated current
- 80
002921024
IZ12/3F/54
- Class name
- Insulated busbar
- Number of poles
- 3
- Function
- Section rails
- Busbar type
- FORK
- Rated current
- 80
002921026

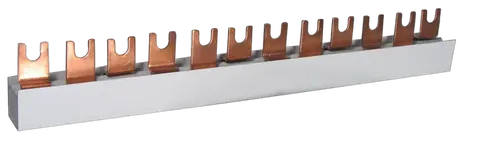

IZ12/1F/54
- Class name
- Insulated busbar
- Number of poles
- Function
- Section rails
- Busbar type
- FORK
- Rated current
- 80
002921060
IZ16/1F/12L
- Class name
- Insulated busbar
- Number of poles
- Function
- Section rails
- Busbar type
- FORK
- Rated current
- 100
002921061

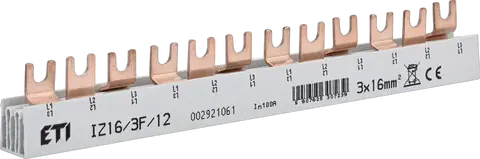

IZ16/3F/12
