002921019

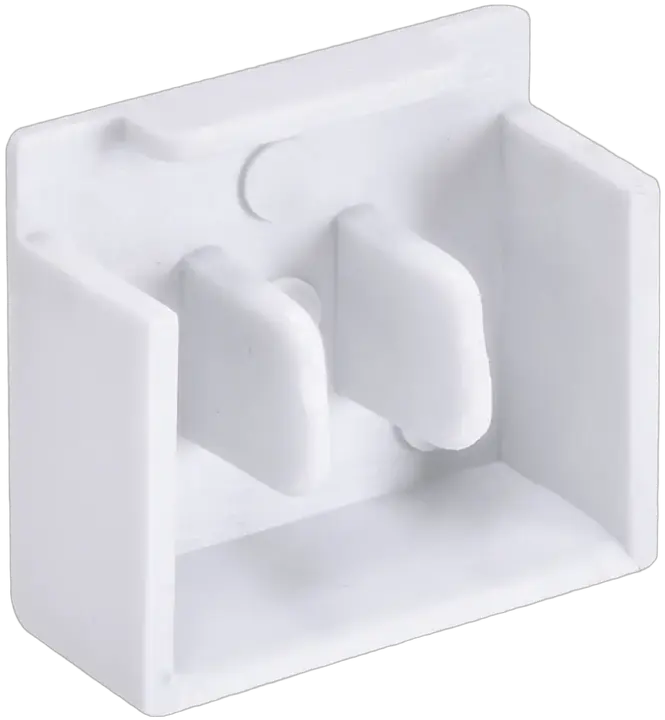

Z-12/3F End cover
- ETI Code:
- 002921019
- To use with:
- IZ10/1F, IZS10/1F
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Number of poles:
- 3
- Function:
- Section rails
- Busbar type:
- FORK
- Rated cross section:
- 12 mm²
- No. Of Phases:
- 3
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- End cover
5 Documents
16 Logistics
Product
- EAN code for a single product
- 3838400042958
- Net weight of the product
- 0.8 g
- Net width
- 17.8 mm
- Net height
- 15.8 mm
- Net depth
- 7.9 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 25 pcs
- EAN code for a basic packaging
- 5907563671140
- Basic packaging weight
- 0.02 kg
- Basic packaging volume
- 0.02 dm³
Transport Packaging
- Transport packaging quantity
- 250 pcs
- EAN code for a transport packaging
- 5907563671157
- Transport packaging weight
- 0.2 kg
- Transport packaging volume
- 0.2 dm³
- Pallet quantity
- 1,000,000 pcs
- Customs tariff
- 39269097
2 ETIM
- Suitable for number of poles
- 3
- Material
- Plastic
ETIM Classification – Version 9.0
