002056304
Obsolete

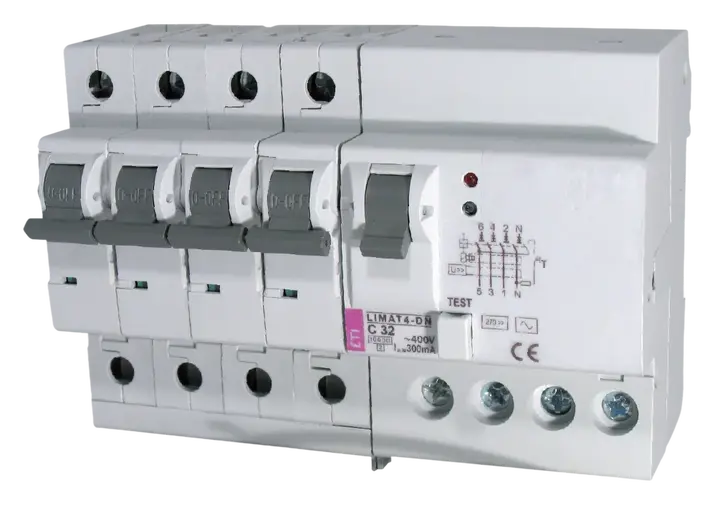

* LIMAT-4-DN 4p A B20/0.3 RCBO
- ETI Code:
- 002056304
- Has overvoltage protection:
- Yes
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Depth:
- 68 mm
- Number of poles:
- 4
- IP rating:
- IP20
- Tripping characteristic:
- B
- Function:
- RCBO
- Short circuit capacity:
- 10 kA
- Rated current:
- 20 A
- Catalogue Group:
- LIMAT4 DN Residual current circuit breakers with
- Rated residual current:
- 0.3 A
3 Documents
11 Logistics
Product
- Net weight of the product
- 0.77 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895549420
- Basic packaging weight
- 0.8 kg
- Basic packaging volume
- 1 dm³
Transport Packaging
- Transport packaging quantity
- 14 pcs
- EAN code for a transport packaging
- 3838895549437
- Transport packaging weight
- 11.8 kg
- Transport packaging volume
- 17.4 dm³
- Pallet quantity
- 728 pcs
12 ETIM
- Built-in depth
- 68 mm
- Leakage current type
- A
- Degree of protection (IP)
- IP20
- Release characteristic
- B
- Rated fault current
- 0.3 A
- Number of poles (total)
- 4
- Concurrently switching neutral conductor
- Yes
- Number of protected poles
- 4
- Rated voltage
- 400 V
- Current limiting class
- 3
- Rated current
- 20 A
- Width in number of modular spacings
- 8
ETIM Classification – Version 9.0
