002061732

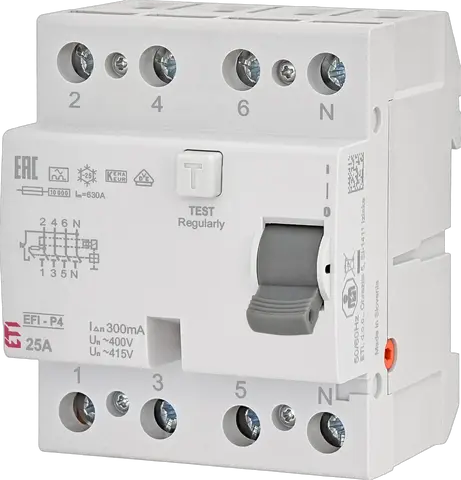

EFI-P4 A X 63/0.3 RCCB
- ETI Code:
- 002061732
- Catalogue Group:
- EFI-P4
- Rated residual operating current IDn:
- 0.3 A
- Built-in depth:
- 70 mm
- Application:
- IEC/EN 61008
- Function:
- RCCB
- Rated residual current:
- 0.3 A
- Residual current type:
- A
- Rated current:
- 63 A
- Depth:
- 70 mm
- Type of Installation:
- TH 35
- Number of poles:
- 3+N
- Rated conditional short-circuit current Inc:
- 10 kA
- Rated AC voltage:
- 400/415 V
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61008
- IP rating:
- IP20
7 Documents
21 Logistics
Product
- Net depth
- 72.86 mm
- Net weight of the product
- 290 g
- Net width
- 71.8 mm
- Net height
- 87.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- EAN code for a basic packaging
- 3838895867142
- Basic packaging weight
- 0.315 kg
- Basic Packaging Dimensions Depth
- 0.074 m
- Basic Packaging Dimensions Height
- 0.075 m
- Basic packaging volume
- 0 m³
- Basic Packaging Dimensions Width
- 0.09 m
- Basic packaging quantity
- 1 pcs
Transport Packaging
- Transport packaging weight
- 8.855 kg
- Transport packaging volume
- 0.017 m³
- Transport packaging quantity
- 27 pcs
- Customs tariff
- 85362010
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- EAN code for a transport packaging
- 3838895867159
- Pallet quantity
- 1,404 pcs
15 ETIM
- Additional equipment possible
- Yes
- Built-in depth
- 70 mm
- Leakage current type
- A
- Surge current capacity
- 0.4 kA
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Rated fault current
- 0.3 A
- Frequency
- 50/60 Hz
- Number of poles
- 4
- Short-circuit breaking capacity (Icw)
- 10 kA
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Rated voltage
- 415 V
- Rated current
- 63 A
- Width in number of modular spacings
- 4
ETIM Classification – Version 9.0
