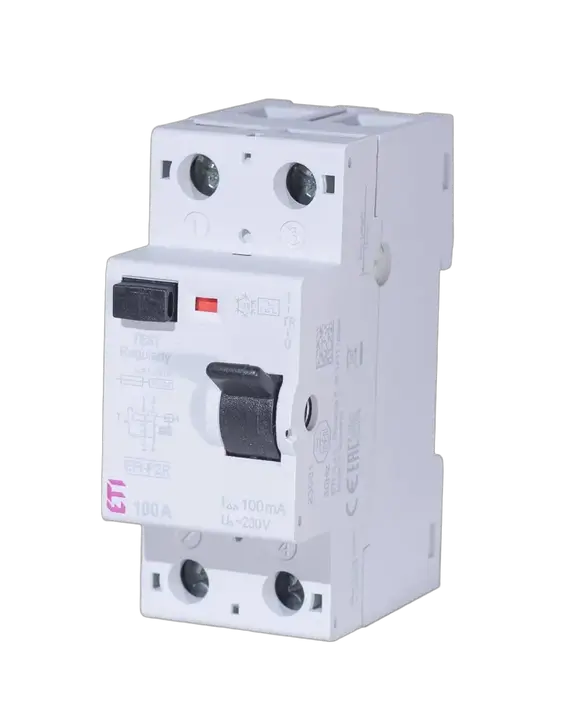

EFI-2 A 100/0.1 RCCB
- ETI Code:
- 002062532
- Function:
- RCCB
- Catalogue Group:
- EFI-2 A, AC A and AC type
- Application:
- IEC/EN 61008
- Built-in depth:
- 69 mm
- Rated residual operating current IDn:
- 0.1 A
- Rated residual current:
- 0.1 A
- Residual current type:
- A
- Rated current:
- 100 A
- Depth:
- 69 mm
- Type of Installation:
- TH 35
- Number of poles:
- 1+N
- Rated conditional short-circuit current Inc:
- 10 kA
- Rated AC voltage:
- 230 V
- Rated cross section:
- 1-35 mm²
- Standards:
- IEC/EN 61008
- IP rating:
- IP20
7 Documents
21 Logistics
Product
- Net weight of the product
- 0.2 kg
- Net width
- 35 mm
- Net height
- 85 mm
- Net depth
- 68.7 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895521457
- Basic packaging weight
- 0.187 kg
- Basic Packaging Dimensions Height
- 73 mm
- Basic Packaging Dimensions Width
- 37.5 mm
- Basic Packaging Dimensions Depth
- 85.5 mm
- Basic packaging volume
- 0.234 dm³
Transport Packaging
- Transport packaging quantity
- 50 pcs
- EAN code for a transport packaging
- 3838895535652
- Transport packaging weight
- 9.514 kg
- Transport Packaging Dimensions Height
- 162 mm
- Transport Packaging Dimensions Width
- 208 mm
- Transport Packaging Dimensions Depth
- 433 mm
- Transport packaging volume
- 14.59 dm³
- Pallet quantity
- 3,400 pcs
- Customs tariff
- 85362090
19 ETIM
- Additional equipment possible
- Yes
- Rated insulation voltage Ui
- 500 V
- Built-in depth
- 69 mm
- Leakage current type
- A
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Rated fault current
- 0.1 A
- Frequency
- 50/60 Hz
- Number of poles
- 2
- Short-circuit breaking capacity (Icw)
- 10 kA
- Rated voltage
- 230 V
- Rated current
- 100 A
- Width in number of modular spacings
- 2
- Ambient temperature during operating(Min)
- -25 °C
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 35 mm²
- Connectable conductor cross section multi-wired(Max)
- 35 mm²
- Ambient temperature during operating(Max)
- 55 °C
