002065522
Obsolete

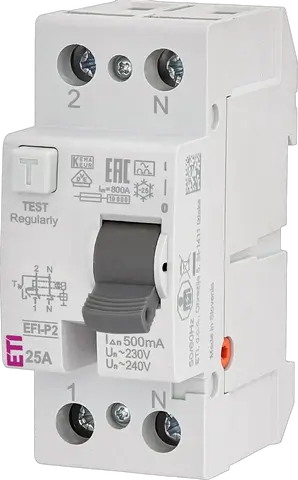

*EFI-2 A 25/0.5 RCCB
- ETI Code:
- 002065522
- Function:
- RCCB
- Catalogue Group:
- EFI-2 A, AC A and AC type
- Application:
- IEC/EN 61008
- Built-in depth:
- 69 mm
- Rated residual operating current IDn:
- 0.5 A
- Rated residual current:
- 0.5 A
- Residual current type:
- A
- Rated current:
- 25 A
- Depth:
- 69 mm
- Type of Installation:
- TH 35
- Number of poles:
- 1+N
- Rated conditional short-circuit current Inc:
- 10 kA
- Rated AC voltage:
- 240 V
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61008
- IP rating:
- IP20
7 Documents
18 Logistics
Product
- Net weight of the product
- 185 g
- Net width
- 36 mm
- Net height
- 87.6 mm
- Net depth
- 70.44 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895020981
- Basic packaging weight
- 0.185 kg
- Basic packaging volume
- 0.27 dm³
Transport Packaging
- Transport packaging quantity
- 54 pcs
- EAN code for a transport packaging
- 3838895276609
- Transport packaging weight
- 10.34 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 2,808 pcs
- Customs tariff
- 85362010
19 ETIM
- Additional equipment possible
- Yes
- Rated insulation voltage Ui
- 500 V
- Built-in depth
- 69 mm
- Leakage current type
- A
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Rated fault current
- 0.5 A
- Frequency
- 50/60 Hz
- Number of poles
- 2
- Short-circuit breaking capacity (Icw)
- 10 kA
- Rated voltage
- 240 V
- Rated current
- 25 A
- Width in number of modular spacings
- 2
- Ambient temperature during operating(Min)
- -25 °C
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 25 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
- Ambient temperature during operating(Max)
- 55 °C
ETIM Classification – Version 9.0
