004773016
Obsolete

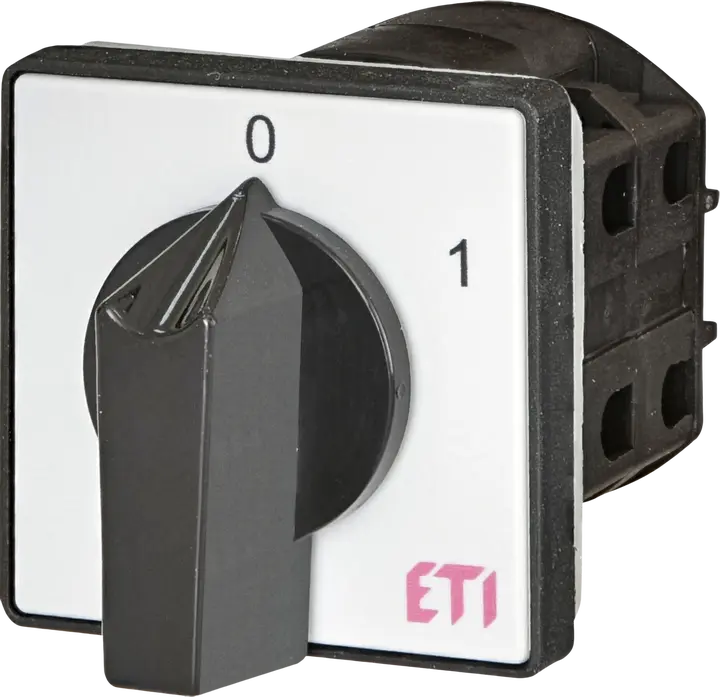

* CS 10 10 U Cam switch
- ETI Code:
- 004773016
- Rated current:
- 10 A
- Catalogue Group:
- Rotary cam switch
- Type of Installation:
- Front mounting
- Type description:
- 0-1
- Number of poles:
- 3
- Thermal current Ith:
- 10 A
- Rated operational current Ie AC-21 at 400V:
- 10 A
- Max. rated operational voltage (AC):
- 400 V
- Rated Insulation Voltage:
- 690 V
- Operation:
- ON-OFF (0-1) switches with 60° switching angle
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.095 kg
- Net width
- 50.1 mm
- Net height
- 66 mm
- Net depth
- 82.18 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895659464
- Basic packaging weight
- 0.095 kg
- Basic packaging volume
- 0.32 dm³
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 3838895659471
- Transport packaging weight
- 9.5 kg
- Transport packaging volume
- 32 dm³
- Pallet quantity
- 5,600 pcs
- Customs tariff
- 85363010
9 ETIM
- Model
- On/Off switch
- Rated permanent current Iu
- 10 A
- Type of control element
- Turn button
- Suitable for front mounting
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 3
- With zero (off) position
- Yes
- Rated operation power at AC-3, 400 V
- 6 kW
- Suitable for distribution board installation
- Yes
ETIM Classification – Version 9.0
