004773058

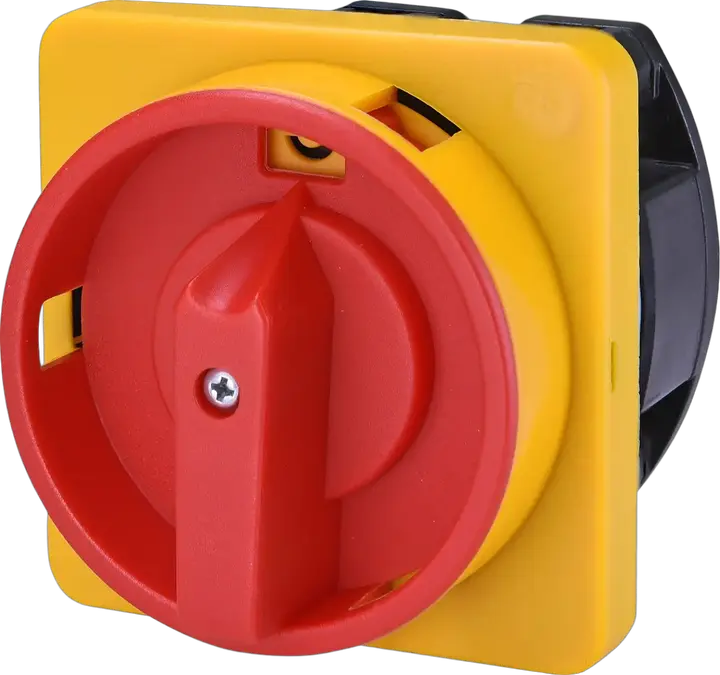

CS 40 90 U LK Cam switch
- ETI Code:
- 004773058
- Rated current:
- 40 A
- Catalogue Group:
- Rotary cam switch
- Type of Installation:
- Front mounting
- Type description:
- 0-1 ES LK
- Number of poles:
- 1
- Thermal current Ith:
- 40 A
- Rated operational current Ie AC-21 at 400V:
- 40 A
- Max. rated operational voltage (AC):
- 480 V
- Rated Insulation Voltage:
- 690 V
- Operation:
- General emergency ON-OFF (0-1) switches version LK with padlocking in "0"
21 Logistics
Product
- Net weight of the product
- 0.22 kg
- Net width
- 75 mm
- Net height
- 75 mm
- Net depth
- 82.02 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895660309
- Basic packaging weight
- 0.22 kg
- Basic Packaging Dimensions Height
- 110 mm
- Basic Packaging Dimensions Width
- 77 mm
- Basic Packaging Dimensions Depth
- 77 mm
- Basic packaging volume
- 0.652 dm³
Transport Packaging
- Transport packaging quantity
- 40 pcs
- EAN code for a transport packaging
- 3838895660316
- Transport packaging weight
- 9.8 kg
- Transport Packaging Dimensions Height
- 240 mm
- Transport Packaging Dimensions Width
- 480 mm
- Transport Packaging Dimensions Depth
- 400 mm
- Transport packaging volume
- 46.08 dm³
- Pallet quantity
- 840 pcs
- Customs tariff
- 85363030
9 ETIM
- Model
- On/Off switch
- Rated permanent current Iu
- 40 A
- Type of control element
- Turn button
- Suitable for front mounting
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 1
- With zero (off) position
- Yes
- Rated operation power at AC-3, 400 V
- 18.5 kW
- Suitable for distribution board installation
- Yes
ETIM Classification – Version 9.0
