004773158
Obsolete

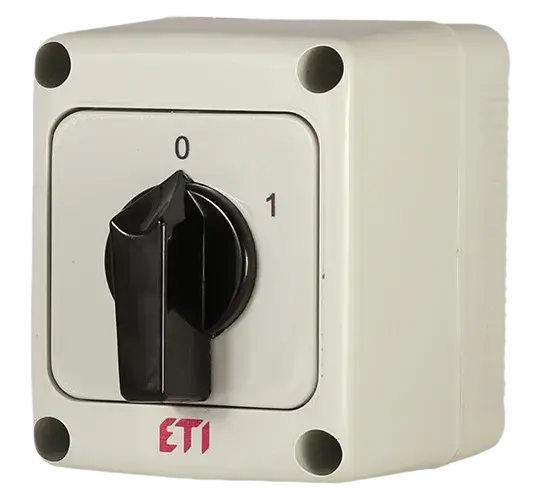

* CS 10 91 PN Cam switch
- ETI Code:
- 004773158
- Rated current:
- 10 A
- Catalogue Group:
- Rotary cam switch in insulated enclosure
- Type of Installation:
- Front mounting
- Type description:
- 0-1 IP65
- Number of poles:
- 2
- Thermal current Ith:
- 10 A
- Rated operational current Ie AC-21 at 400V:
- 10 A
- Max. rated operational voltage (AC):
- 400 V
- Rated Insulation Voltage:
- 690 V
- Operation:
- ON-OFF (0-1) switches in housing with 60° switchin
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.18 kg
- Net width
- 65 mm
- Net height
- 82 mm
- Net depth
- 97.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895662303
- Basic packaging weight
- 0.18 kg
- Basic packaging volume
- 0.76 dm³
Transport Packaging
- Transport packaging quantity
- 44 pcs
- EAN code for a transport packaging
- 3838895662310
- Transport packaging weight
- 7.92 kg
- Transport packaging volume
- 33.44 dm³
- Pallet quantity
- 2,376 pcs
- Customs tariff
- 85363010
8 ETIM
- Model
- On/Off switch
- Rated permanent current Iu
- 10 A
- Type of control element
- Turn button
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 2
- Complete device in housing
- Yes
- With zero (off) position
- Yes
- Rated operation power at AC-3, 400 V
- 6 kW
ETIM Classification – Version 9.0
