004661893

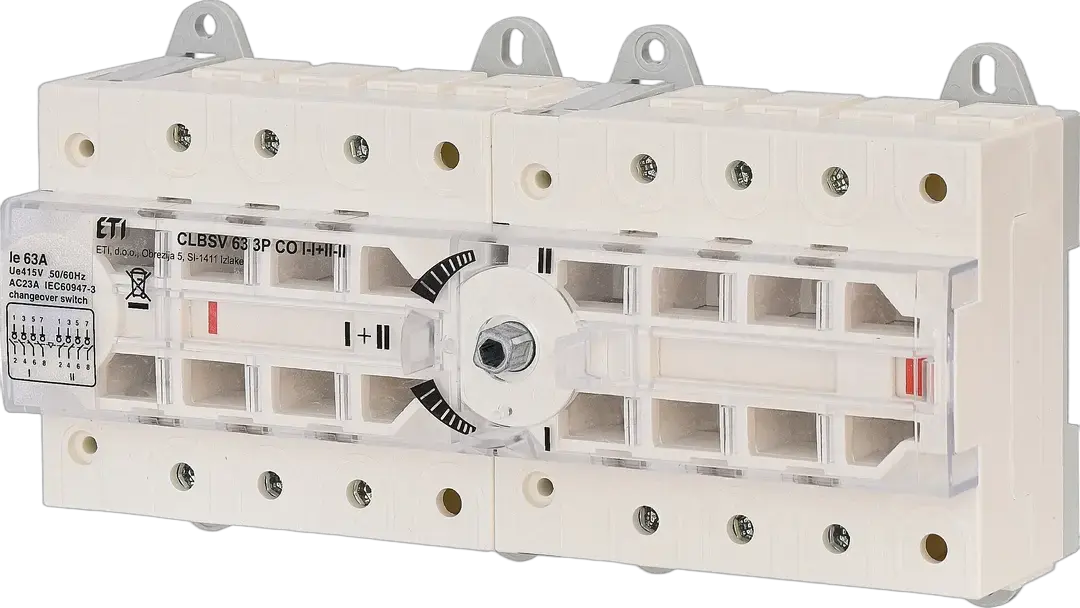

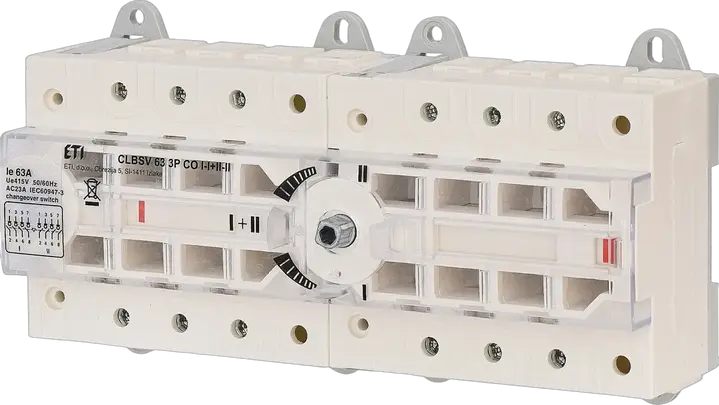

CLBSV 63 3P CO I-I+II-II Changeover switch
- ETI Code:
- 004661893
- Rated current:
- 63 A
- Type description:
- DIN rail mounting
- Function:
- I-I+II-II
- Number of poles:
- 3
- Thermal current Ith:
- 63 A
- Rated operational current Ie AC-21 A/B at 415V:
- 63 A
- Rated Insulation Voltage:
- 800 V
- Catalogue Group:
- Compact load break switch CLBSV
14 Logistics
Product
- Net weight of the product
- 1.36 kg
- Net width
- 215 mm
- Net height
- 115.4 mm
- Net depth
- 75.25 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895824152
- Transport packaging weight
- 1.36 kg
- Transport Packaging Dimensions Height
- 113 mm
- Transport Packaging Dimensions Width
- 253 mm
- Transport Packaging Dimensions Depth
- 152 mm
- Transport packaging volume
- 4.346 dm³
- Pallet quantity
- 250 pcs
- Customs tariff
- 85365080
11 ETIM
- Version as maintenance-/service switch
- Yes
- Max. rated operation voltage Ue AC
- 800 V
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 63 A
- Type of control element
- Short thumb-grip
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 30 kW
- Version as main switch
- Yes
ETIM Classification – Version 9.0
