004660012
Obsolete

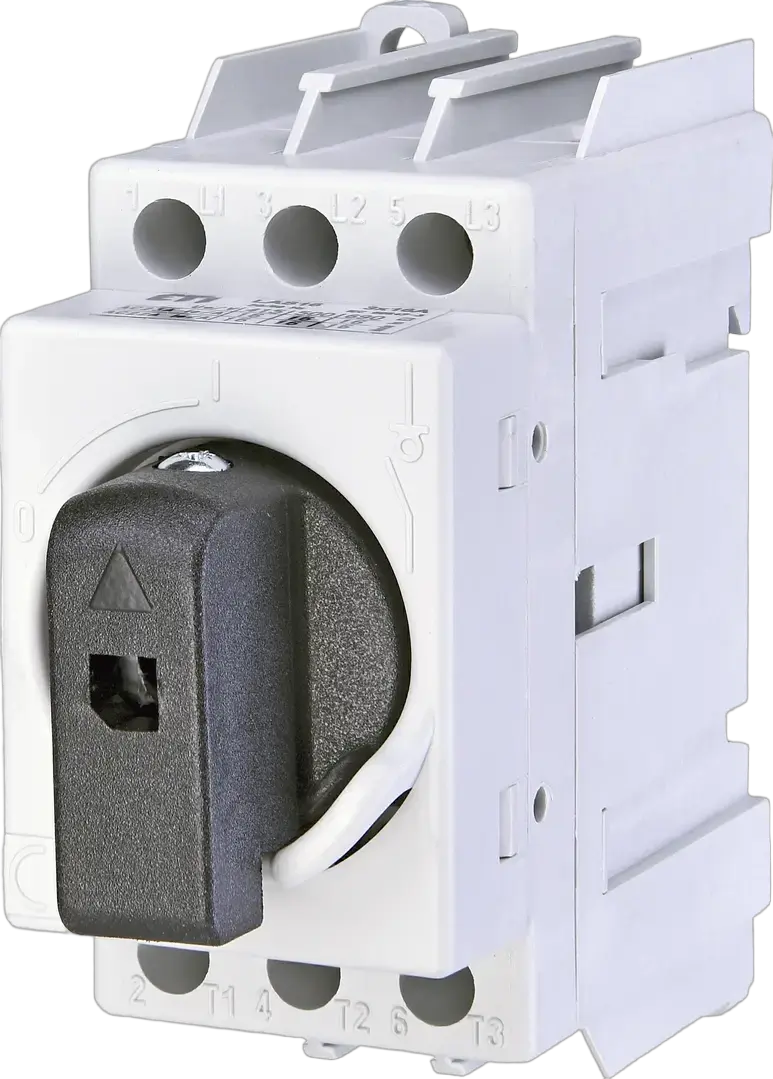

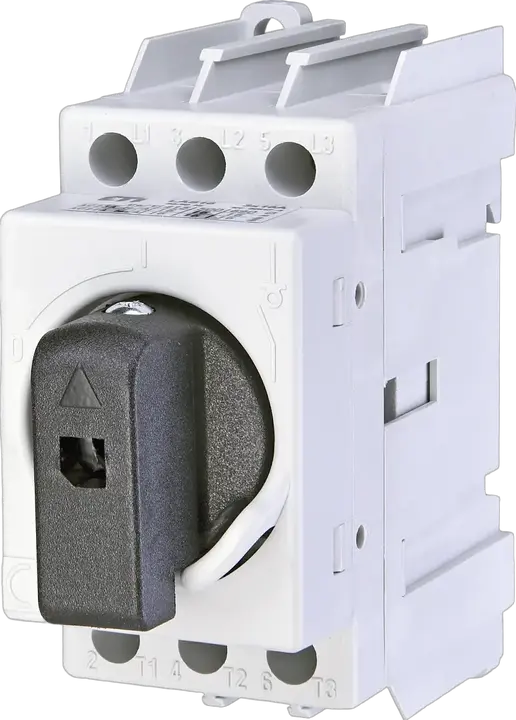

* LAS25 Switch disconnector
- ETI Code:
- 004660012
- Type of Installation:
- TH 35
- Max. rated operational voltage (AC):
- 690 V
- Thermal current Ith:
- 25 A
- Rated operational current Ie AC-21 A/B at 415V:
- 25 A
- Rated Insulation Voltage:
- 800 V
- Function:
- Switch disconnectors (1-0)
- Rated current:
- 25 A
- Type description:
- DIN-rail mounted
- Number of poles:
- 3
- Catalogue Group:
- LAS
3 Documents
8 Logistics
Product
- Net weight of the product
- 0.15 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895577720
- Transport packaging weight
- 0.15 kg
- Transport packaging volume
- 0.3 dm³
- Pallet quantity
- 5,333 pcs
- Customs tariff
- 85365080
16 ETIM
- Version as emergency stop installation
- Yes
- Version as maintenance-/service switch
- Yes
- Max. rated operation voltage Ue AC
- 690 V
- Interlockable
- Yes
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 25 A
- Type of control element
- Turn button
- Conditioned rated short-circuit current Iq
- 4.5 kA
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 11 kW
- Suitable for intermediate mounting
- Yes
- Suitable for distribution board installation
- Yes
- Version as main switch
- Yes
ETIM Classification – Version 9.0
