004673221

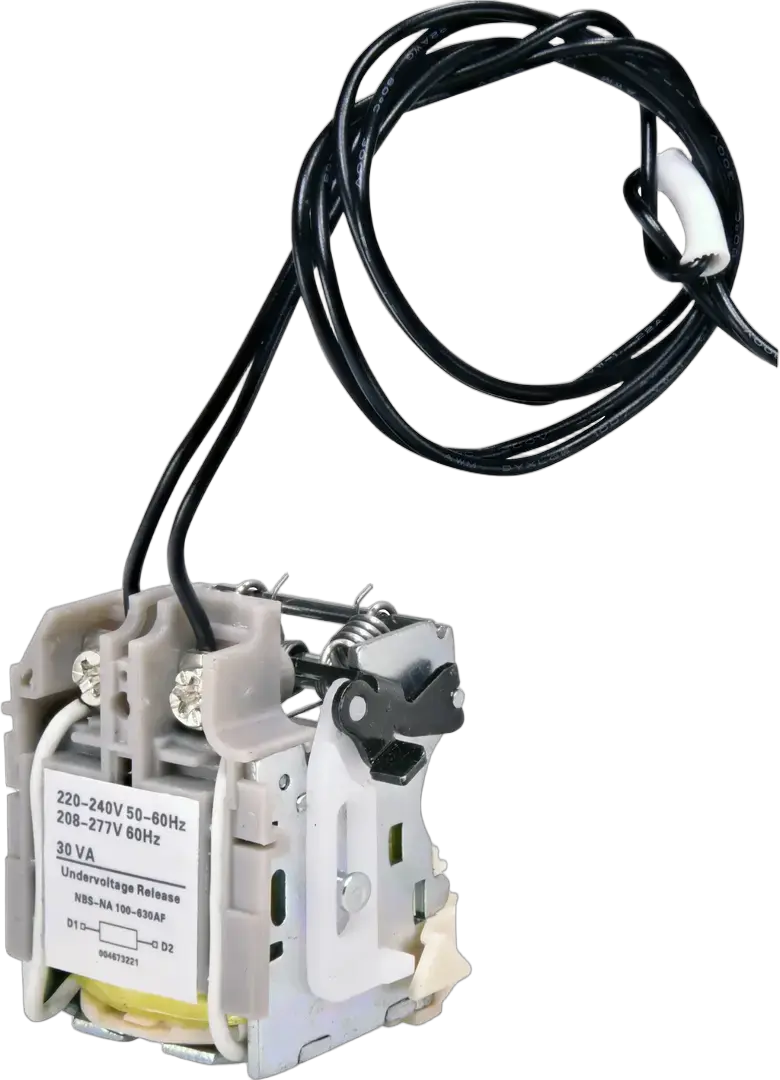

NBS-NA 100-630AF AC220/230V Undervoltage trip unit
- ETI Code:
- 004673221
- To use with:
- NBS 100-630AF
- Function accessories:
- Undervoltage trip NA AC 220/230V
3 Documents
24 Logistics
Product
- Net weight of the product
- 0.106 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895942504
- Basic packaging weight
- 0.116 kg
- Basic Packaging Dimensions Height
- 39 mm
- Basic Packaging Dimensions Width
- 65 mm
- Basic Packaging Dimensions Depth
- 80 mm
- Basic packaging volume
- 0.203 dm³
Transport Packaging
- Intermediate packaging quantity
- 10 pcs
- EAN code for a intermediate packaging
- 3838895942511
- Intermediate packaging weight
- 1.152 kg
- Intermediate Packaging Dimensions Height
- 60 mm
- Intermediate Packaging Dimensions Width
- 115 mm
- Intermediate Packaging Dimensions Depth
- 240 mm
- Transport packaging quantity
- 150 pcs
- EAN code for a transport packaging
- 3838400093424
- Transport packaging weight
- 17.71 kg
- Transport Packaging Dimensions Height
- 265 mm
- Transport Packaging Dimensions Width
- 290 mm
- Transport Packaging Dimensions Depth
- 345 mm
- Transport packaging volume
- 26.513 dm³
- Pallet quantity
- 5,550 pcs
- Customs tariff
- 85389099
6 ETIM
- Voltage type for actuating
- AC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 60 Hz(Min)
- 230 V
- Rated control supply voltage AC 50 Hz(Min)
- 230 V
- Rated control supply voltage AC 60 Hz(Max)
- 230 V
- Rated control supply voltage AC 50 Hz(Max)
- 230 V
ETIM Classification – Version 9.0
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
14 Tags
004673221Undervoltage trip unitNBS-NA 100-630AF AC220/230VETIBREAKMCCBNBSAccessoriesInternal AccessoriesUndervoltage trip for NBS 100-630AFInternationalMoulded case circuit breakers and disconnectors ETIBREAKAccessories NBS SeriesFunction accessories: Undervoltage trip NA AC 220/230VUndervoltage trip unit
