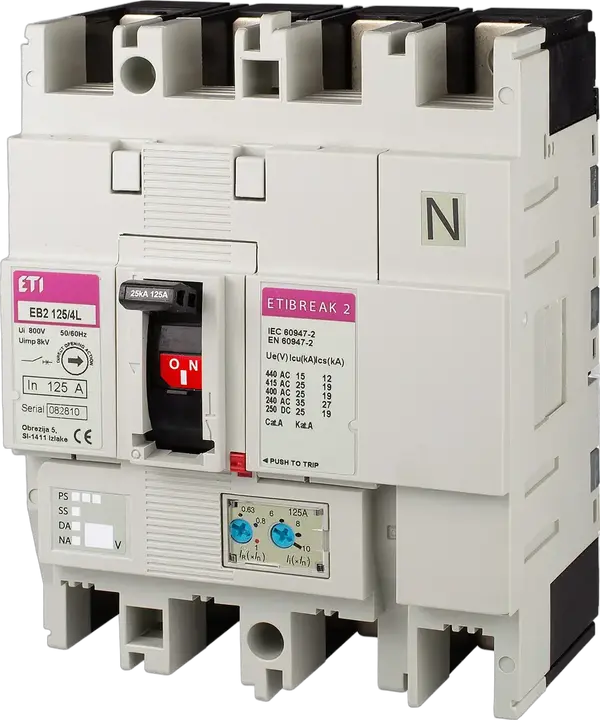

EB2 125/4S 125A 4p Molded Case Circuit Breaker
- ETI Code:
- 004671052
- Application:
- 60947
- IP rating:
- IP20
- Short circuit capacity:
- 36 kA
- Rated current:
- 125 A
- Number of poles:
- 4
- Connection type:
- front connection
- Rated impulse withstand voltage Uimp:
- 8 kV
- Rated short-circuit breaking capacity at 415V Icu/Ics:
- 36 kA
- Rated operational voltage (AC):
- 690 V
- Rated operational voltage (DC):
- 250 V
- Rated Insulation Voltage:
- 800 V
- Thermal Adjustment:
- 0,63-1
- Magnetic adjustment:
- 6-10
- Adjustable or fixed:
- adjustable
- Standards:
- 60947
- Function:
- MCCB
- Catalogue Group:
- EB2
- Frame Size:
- 125A
14 Logistics
Product
- Net weight of the product
- 1.4 kg
- Net width
- 120 mm
- Net height
- 155 mm
- Net depth
- 92 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895409700
- Transport packaging weight
- 1.4 kg
- Transport Packaging Dimensions Height
- 125 mm
- Transport Packaging Dimensions Width
- 160 mm
- Transport Packaging Dimensions Depth
- 110 mm
- Transport packaging volume
- 2.2 dm³
- Pallet quantity
- 571 pcs
- Customs tariff
- 85362090
13 ETIM
- Motor drive optional
- Yes
- Rated permanent current Iu
- 125 A
- Degree of protection (IP)
- IP20
- Type of control element
- Rocker lever
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 4
- Device construction
- Built-in device fixed built-in technique
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 36 kA
- With switched-off indicator
- Yes
- Overload release current setting(Min)
- 78.8 A
- Adjustment range undelayed short-circuit release(Min)
- 750 A
- Overload release current setting(Max)
- 125 A
- Adjustment range undelayed short-circuit release(Max)
- 1,250 A
ETIM Classification – Version 9.0
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
29 Tags
004671052Molded Case Circuit BreakerEB2 125/4S 125A 4pETIBREAKMCCBEB2EB2thermal magneticEB2 125InternationalMoulded case circuit breakers and disconnectors ETIBREAKCircuit breakers EB2 Series 20-1600ARated impulse withstand voltage Uimp: 8 kVConnection type: front connectionRated operational voltage (AC): 690 VFunction: MCCBNumber of poles: 4Frame Size: 125AShort circuit capacity: 36 kA/36 kARated Insulation Voltage: 800 VAdjustable or fixed: adjustableMagnetic adjustment: 6-10Rated operational voltage (DC): 250 VStandards: 60947Thermal Adjustment: 0,63-1Rated current: 125 A/125 ARated short-circuit breaking capacity at 415V Icu/Ics: 36 kA/36 kACatalogue Group: EB2Molded Case Circuit Breaker TOWAR Short circuit capacity: 36 kA/36 kA Rated current: 125 A/125 A Number of poles: 4 Rated short-circuit breaking capacity at 415V Icu/Ics: 36 kA/36 kA Adjustable or fixed: adjustable Function: MCCB Catalogue Group: EB2 Frame Size: 125A
