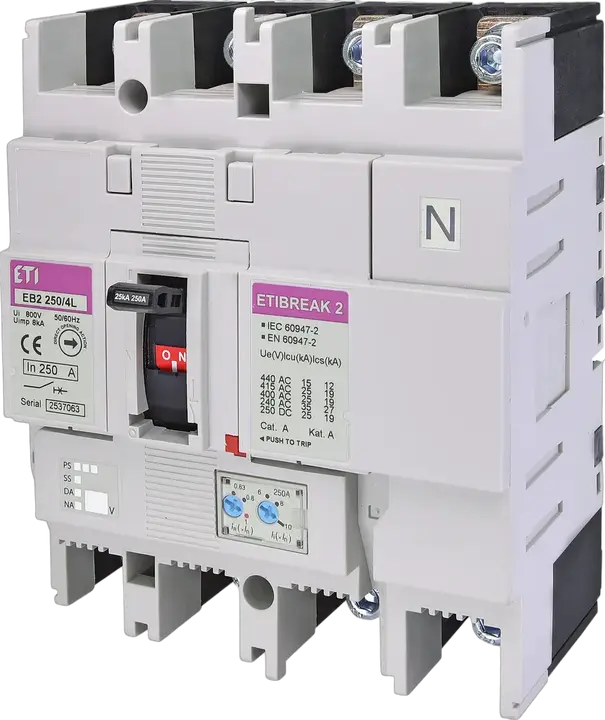

EB2 250/4L 160A 4p Molded Case Circuit Breaker
- ETI Code:
- 004671074
- Application:
- 60947
- Short circuit capacity:
- 25 kA
- Rated current:
- 160 A
- Number of poles:
- 4
- Connection type:
- FRONT
- Rated impulse withstand voltage Uimp:
- 8 kV
- Rated short-circuit breaking capacity at 415V Icu/Ics:
- 25/19 kA
- Rated operational voltage (AC):
- 690 V
- Rated operational voltage (DC):
- 250 V
- Rated Insulation Voltage:
- 800 V
- Thermal Adjustment:
- 0,63-1
- Magnetic adjustment:
- 6-13
- Adjustable or fixed:
- adjustable
- Standards:
- 60947
- Function:
- MCCB
- Catalogue Group:
- EB2
- Frame Size:
- 250
4 Documents
14 Logistics
Product
- Net weight of the product
- 1.9 kg
- Net width
- 140 mm
- Net height
- 165 mm
- Net depth
- 92 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895409762
- Transport packaging weight
- 1.9 kg
- Transport Packaging Dimensions Height
- 150 mm
- Transport Packaging Dimensions Width
- 170 mm
- Transport Packaging Dimensions Depth
- 110 mm
- Transport packaging volume
- 2.805 dm³
- Pallet quantity
- 421 pcs
- Customs tariff
- 85362090
16 ETIM
- Motor drive optional
- Yes
- Complete device with protection unit
- Yes
- Rated permanent current Iu
- 160 A
- Degree of protection (IP)
- IP20
- Type of control element
- Toggle
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 4
- Device construction
- Complete device in housing
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 25 kA
- Overload release current setting(Min)
- 101 A
- Adjustment range undelayed short-circuit release(Min)
- 960 A
- Rated voltage(Min)
- 415 V
- Rated voltage(Max)
- 415 V
- Overload release current setting(Max)
- 160 A
- Adjustment range undelayed short-circuit release(Max)
- 2,080 A
