004671115

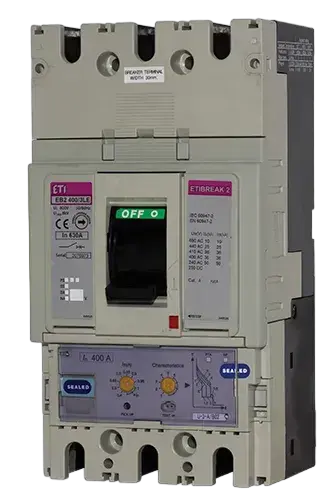

EB2 400/3E 400A 3p APG Molded Case Circuit Breaker
- ETI Code:
- 004671115
- Application:
- 60947
- Short circuit capacity:
- 50 kA
- Rated current:
- 400 A
- Number of poles:
- 3
- Connection type:
- front connection
- Rated impulse withstand voltage Uimp:
- 8 kV
- Rated short-circuit breaking capacity at 415V Icu/Ics:
- 50 kA
- Rated operational voltage (AC):
- 690 V
- Rated Insulation Voltage:
- 800 V
- Thermal Adjustment:
- 0,4-1
- Magnetic adjustment:
- adjustable
- Adjustable or fixed:
- adjustable
- Standards:
- 60947
- Function:
- MCCB
- Catalogue Group:
- EB2
- Frame Size:
- 400A
5 Documents
14 Logistics
Product
- Net weight of the product
- 4.3 kg
- Net width
- 140 mm
- Net height
- 260 mm
- Net depth
- 145 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895703785
- Transport packaging weight
- 4.3 kg
- Transport Packaging Dimensions Height
- 145 mm
- Transport Packaging Dimensions Width
- 265 mm
- Transport Packaging Dimensions Depth
- 180 mm
- Transport packaging volume
- 6.916 dm³
- Pallet quantity
- 186 pcs
- Customs tariff
- 85362090
2 ETIM
- Number of poles
- 3
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 50 kA
ETIM Classification – Version 9.0
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
28 Tags
004671115Molded Case Circuit BreakerEB2 400/3E 400A 3p APGETIBREAKMCCBEB2EB2electronicEB2 400InternationalMoulded case circuit breakers and disconnectors ETIBREAKCircuit breakers EB2 Series 20-1600ARated impulse withstand voltage Uimp: 8 kVConnection type: front connectionRated operational voltage (AC): 690 VFunction: MCCBNumber of poles: 3Frame Size: 400AShort circuit capacity: 50 kA/50 kARated Insulation Voltage: 800 VAdjustable or fixed: adjustableMagnetic adjustment: adjustableStandards: 60947Thermal Adjustment: 0,4-1Rated current: 400 A/400 ARated short-circuit breaking capacity at 415V Icu/Ics: 50 kA/50 kACatalogue Group: EB2Molded Case Circuit Breaker TOWAR Short circuit capacity: 50 kA/50 kA Rated current: 400 A/400 A Number of poles: 3 Rated short-circuit breaking capacity at 415V Icu/Ics: 50 kA/50 kA Adjustable or fixed: adjustable Function: MCCB Catalogue Group: EB2 Frame Size: 400A
Accessories 73 All Accessories
Similar Products 183 All Products

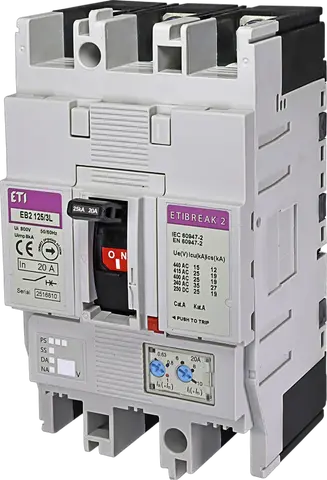

004671021
