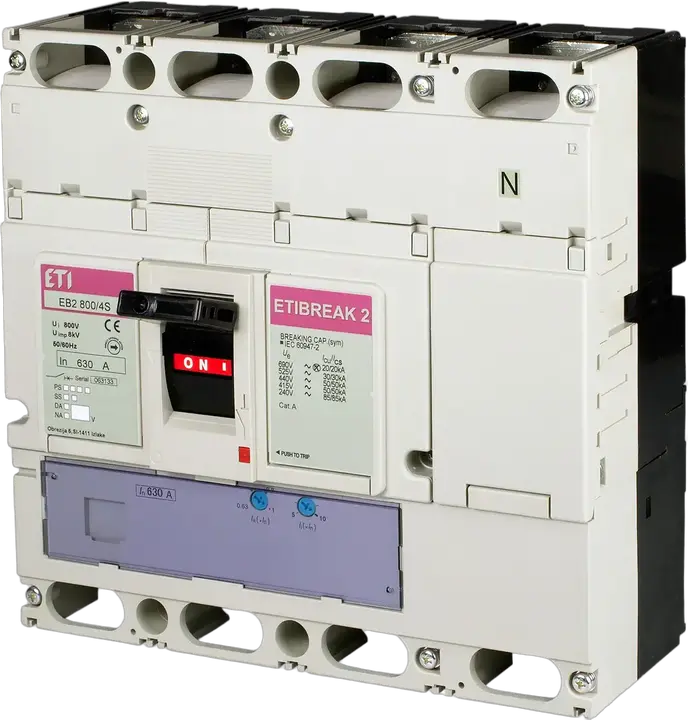

EB2 800/4H 630A 4p Molded Case Circuit Breaker
- ETI Code:
- 004672172
- Application:
- 60947
- Short circuit capacity:
- 70/50 kA
- Rated current:
- 630 A
- Number of poles:
- 4
- Connection type:
- front connection
- Rated impulse withstand voltage Uimp:
- 8 kV
- Rated short-circuit breaking capacity at 415V Icu/Ics:
- 70/50 kA
- Rated operational voltage (AC):
- 690 V
- Rated operational voltage (DC):
- 250 V
- Rated Insulation Voltage:
- 800 V
- Thermal Adjustment:
- 0,63-1
- Magnetic adjustment:
- 5-10
- Adjustable or fixed:
- adjustable
- Standards:
- 60947
- Function:
- MCCB
- Catalogue Group:
- EB2
- Frame Size:
- 800A
5 Documents
14 Logistics
Product
- Net weight of the product
- 11.5 kg
- Net width
- 280 mm
- Net height
- 433 mm
- Net depth
- 142.64 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895664864
- Transport packaging weight
- 11.5 kg
- Transport Packaging Dimensions Height
- 300 mm
- Transport Packaging Dimensions Width
- 440 mm
- Transport Packaging Dimensions Depth
- 190 mm
- Transport packaging volume
- 25.08 dm³
- Pallet quantity
- 70 pcs
- Customs tariff
- 85362090
2 ETIM
- Number of poles
- 4
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 50 kA
ETIM Classification – Version 9.0
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
29 Tags
