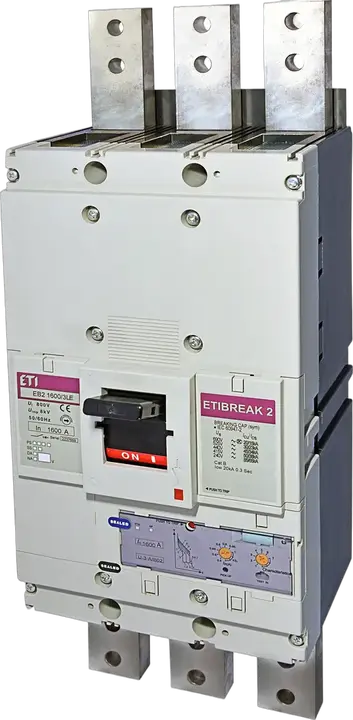

EB2 1600/3LE-FC 1600A 3p Molded Case Circuit Breaker
- ETI Code:
- 004672250
- Application:
- 60947
- IP rating:
- IP20
- Short circuit capacity:
- 50 kA
- Rated current:
- 1600 A
- Number of poles:
- 3
- Connection type:
- extension bars
- Rated impulse withstand voltage Uimp:
- 8 kV
- Rated short-circuit breaking capacity at 415V Icu/Ics:
- 50/38 kA
- Rated operational voltage (AC):
- 690 V
- Rated Insulation Voltage:
- 800 V
- Thermal Adjustment:
- 0,4-1
- Magnetic adjustment:
- adjustable
- Adjustable or fixed:
- adjustable
- Standards:
- 60947
- Function:
- MCCB
- Catalogue Group:
- EB2
- Frame Size:
- 1600A
14 Logistics
Product
- Net weight of the product
- 27 kg
- Net width
- 210 mm
- Net height
- 570.2 mm
- Net depth
- 189.29 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895665045
- Transport packaging weight
- 27 kg
- Transport Packaging Dimensions Height
- 600 mm
- Transport Packaging Dimensions Width
- 330 mm
- Transport Packaging Dimensions Depth
- 280 mm
- Transport packaging volume
- 55.44 dm³
- Pallet quantity
- 12 pcs
- Customs tariff
- 85362090
15 ETIM
- Motor drive optional
- Yes
- Rated permanent current Iu
- 1,600 A
- Degree of protection (IP)
- IP20
- Type of control element
- Rocker lever
- Type of electrical connection of main circuit
- Rail connection
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 50 kA
- With switched-off indicator
- Yes
- Overload release current setting(Min)
- 640 A
- Adjustment range short-term delayed short-circuit release(Min)
- 1,600 A
- Adjustment range undelayed short-circuit release(Min)
- 8,960 A
- Adjustment range short-term delayed short-circuit release(Max)
- 16,000 A
- Overload release current setting(Max)
- 1,600 A
- Adjustment range undelayed short-circuit release(Max)
- 19,200 A
