002440873

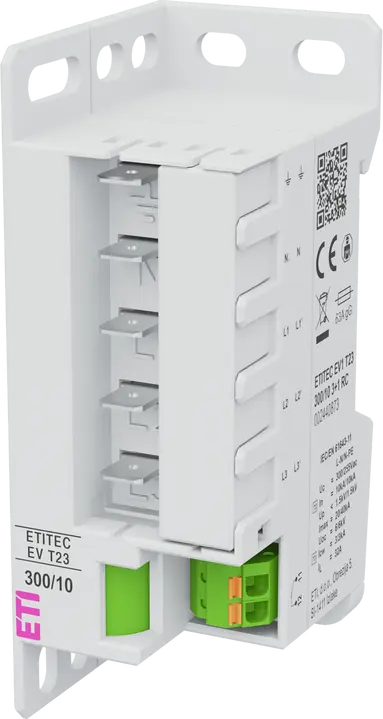

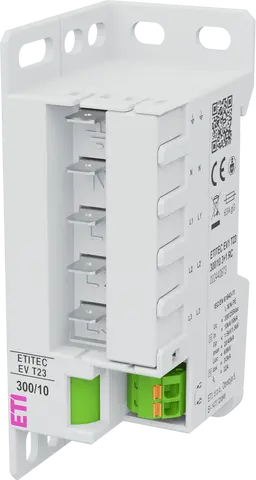

ETITEC EV1 T23 300/10 3+1 RC Surge arrester
- ETI Code:
- 002440873
- Function:
- SPD
- Surge arrester type:
- T2, T3
- Uc Continous Operating Voltage AC:
- 300 V
- Nominal Discharge Current (8/20 μs) In:
- 10 kA
- Current type:
- AC
- Rated AC voltage:
- 230 V
- Up - Voltage Protection Level:
- 1.5 kV
- Remote signalisation:
- Yes
- Leakage Current:
- Yes
- Network system:
- TN/TT
- Installation:
- Home and residental building protection
- Built-in depth:
- 38 mm
- IP rating:
- IP20
- Applied Technology:
- MOV
- Catalogue Group:
- ETITEC EV
- Type of Installation:
- IT mounting plate, TH 35
1 Documents
18 Logistics
Product
- Net weight of the product
- 0.114 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400114068
- Basic packaging weight
- 0.132 kg
- Basic Packaging Dimensions Height
- 55 mm
- Basic Packaging Dimensions Width
- 46 mm
- Basic Packaging Dimensions Depth
- 99 mm
- Basic packaging volume
- 0.25 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838400114075
- Transport packaging weight
- 1.665 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 2,712 pcs
- Customs tariff
- 85363090
17 ETIM
- System configuration other
- Yes
- Max. conductor cross section flexible (fine-strand)
- 6 mm²
- Max. discharge surge current (8/20)
- 20 kA
- Number of conductors (without earthing)
- 4
- Voltage protection level L-N
- 1.5 kV
- Nominal voltage AC
- 230 V
- Degree of protection (IP)
- IP20
- Mounting method
- Other
- Construction size
- Other
- Short-circuit breaking capacity (Isccr)
- 10 kA
- Voltage protection level
- 1.5 kV
- Signalling at the device
- Optical
- Category type 2
- Yes
- Voltage protection level N-PE
- 1.5 kV
- Max. continuous voltage AC
- 300 V
- With remote signalling contact
- Yes
- Nominal discharge surge current (8/20)
- 10 kA
ETIM Classification – Version 9.0
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
30 Tags
002440873Surge arresterETITEC EV1 T23 300/10 3+1 RCETITECSurge arrestersSurge arrestersETITEC EV T23ETITEC EV T23ETITEC EV T23InternationalSurge arresters ETITECAC surge arrestersAC e-charger surge arresterSurge arrester type: T2, T3Up - Voltage Protection Level: 1.5 kVCurrent type: ACInstallation: Home and residental building protectionFunction: SPDIP rating: IP20Uc Continous Operating Voltage AC: 300 VRemote signalisation: TrueRated AC voltage: 230 V/230 VType of Installation: IT mounting plate, TH 35Built-in depth: 38 mmApplied Technology: MOVNetwork system: TN/TTLeakage Current: TrueNominal Discharge Current (8/20 μs) In: 10 kACatalogue Group: ETITEC EVSurge arrester Type of Installation: IT mounting plate, TH 35 Surge arrester type: T2, T3 Uc Continous Operating Voltage AC: 300 V Nominal Discharge Current (8/20 μs) In: 10 kA Current type: AC Rated AC voltage: 230 V/230 V Up - Voltage Protection Level: 1.5 kV Remote signalisation: True Leakage Current: True Network system: TN/TT Installation: Home and residental building protection Built-in depth: 38 mm IP rating: IP20 Applied Technology: MOV Catalogue Group: ETITEC EV
Similar Products 3 All Products
002440870

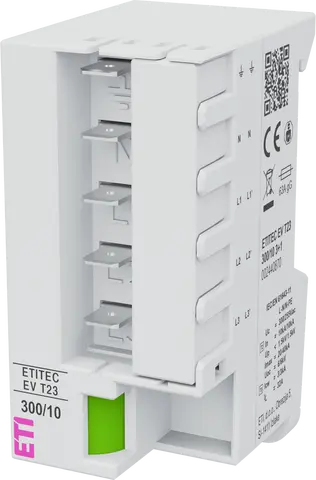

ETITEC EV T23 300/10 3+1
