002440337 Obsolete

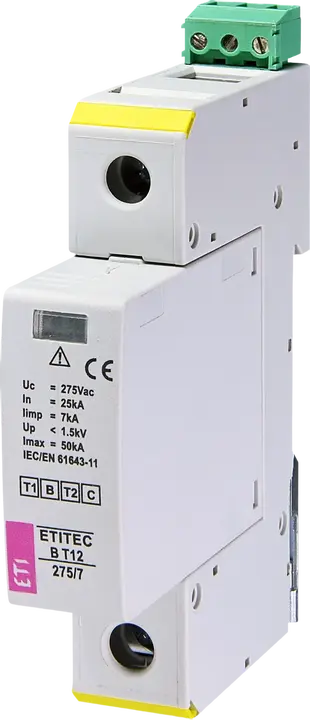

* ETITEC B T12 275/7 1+0 RC Surge arrester

ETI Code:: 002440337
Function:: SPD
Surge arrester type:: T1, T2
Uc Continous Operating Voltage AC:: 275 V
Iimp(10/350) Impulse Current:: 7 kA
Nominal Discharge Current (8/20 μs) In:: 25 kA
Current type:: AC
Rated AC voltage:: 230 V
Up - Voltage Protection Level:: 1.5 kV
Remote signalisation:: Yes
Leakage Current:: Yes
Network system:: TN
Number of modules:: 1
Installation:: Home and residental building protection
Built-in depth:: 68 mm
IP rating:: IP20
Applied Technology:: MOV
Catalogue Group:: ETITEC B

Accessories

Product

Net weight of the product: 0.133 kg
Net width: 17.8 mm
Net height: 102.9 mm
Net depth: 74.15 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895767244
Basic packaging weight: 0.133 kg
Basic packaging volume: 0.19 dm³

Transport Packaging

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895767251
Transport packaging weight: 1.596 kg
Transport packaging volume: 2.28 dm³
Pallet quantity: 4,800 pcs
Customs tariff: 85363090

System configuration TN-C: Yes
Max. conductor cross section flexible (fine-strand): 25 mm²
Remote signalling: Yes
Nominal voltage AC: 230 V
Max. conductor cross section solid (solid, stranded): 35 mm²
Test class: Type 1 + 2
Degree of protection (IP): IP20
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 1 modular spacing
Lightning impulse current (10/350 µs): 7 kA
System configuration TN-S: Yes
Voltage protection level: 1.5 kV
System configuration TN: Yes
Number of poles: 1
Signalling at the device: Optical
Max. continuous voltage AC: 275 V

ETIM Classification – Version 9.0
