002440538
Obsolete

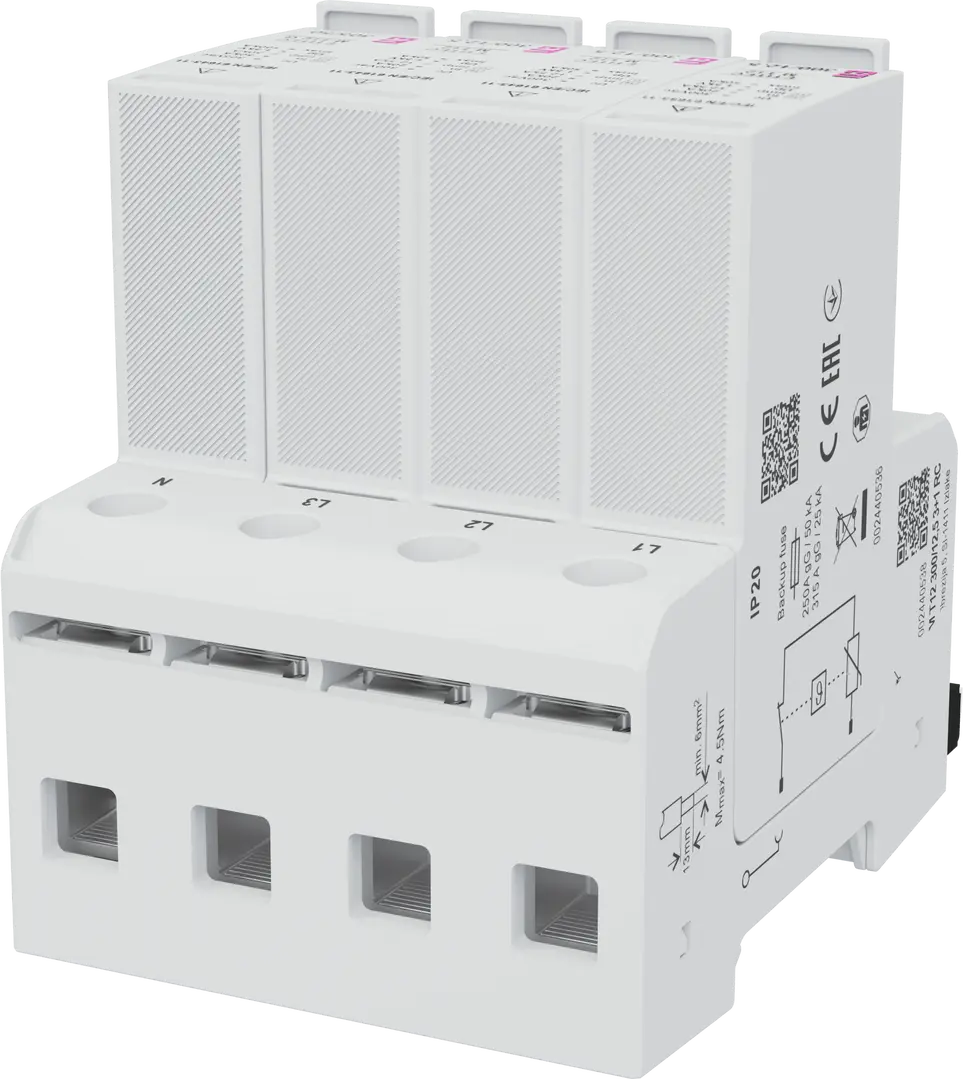

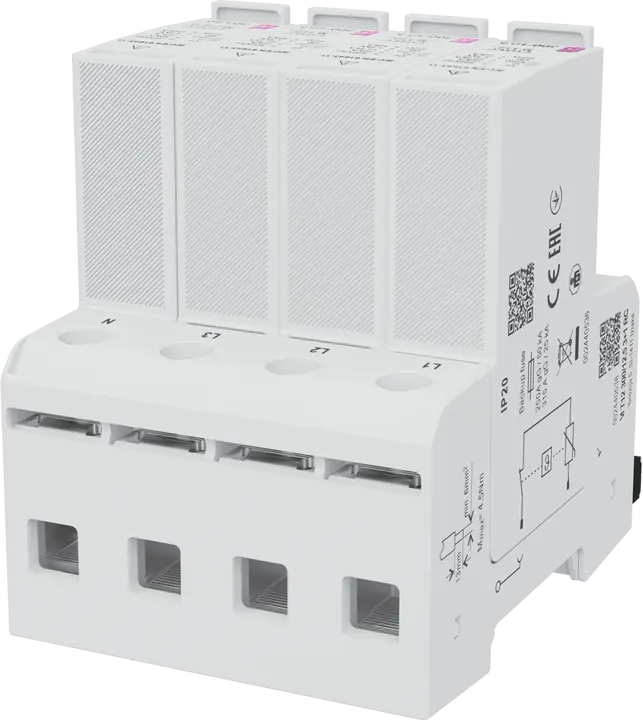

*ETITEC M T12 300/12,5 3+1 RC Surge arrester
- ETI Code:
- 002440538
- Function:
- SPD
- Surge arrester type:
- T1, T2
- Uc Continous Operating Voltage AC:
- 300 V
- Iimp(10/350) Impulse Current:
- 12.5 kA
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Up - Voltage Protection Level:
- 1.5 kV
- Remote signalisation:
- Yes
- Leakage Current:
- Yes
- Network system:
- TT/TNS
- Number of modules:
- 4
- Built-in depth:
- 86 mm
- Applied Technology:
- MOV
- Catalogue Group:
- ETITEC M
18 Logistics
Product
- Net weight of the product
- 0.689 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895918332
- Basic packaging weight
- 0.708 kg
- Basic Packaging Dimensions Height
- 102 mm
- Basic Packaging Dimensions Width
- 82 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0.92 dm³
Transport Packaging
- Transport packaging quantity
- 4 pcs
- EAN code for a transport packaging
- 3838895918349
- Transport packaging weight
- 2.913 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 904 pcs
- Customs tariff
- 85363090
13 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Nominal voltage AC
- 400 V
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Test class
- Type 1 + 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 4 modular spacing
- Lightning impulse current (10/350 µs)
- 12.5 kA
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TN
- Yes
- Number of poles
- 4
- System configuration TT
- Yes
- Max. continuous voltage AC
- 300 V
ETIM Classification – Version 9.0
