Surge arresters are essential for protecting electrical and electronic equipment from overvoltages. Selecting the appropriate surge arrester and understanding its key parameters ensures optimal protection. ETI ETITEC offers a comprehensive range of high-quality surge arresters to meet various application needs.

002442996

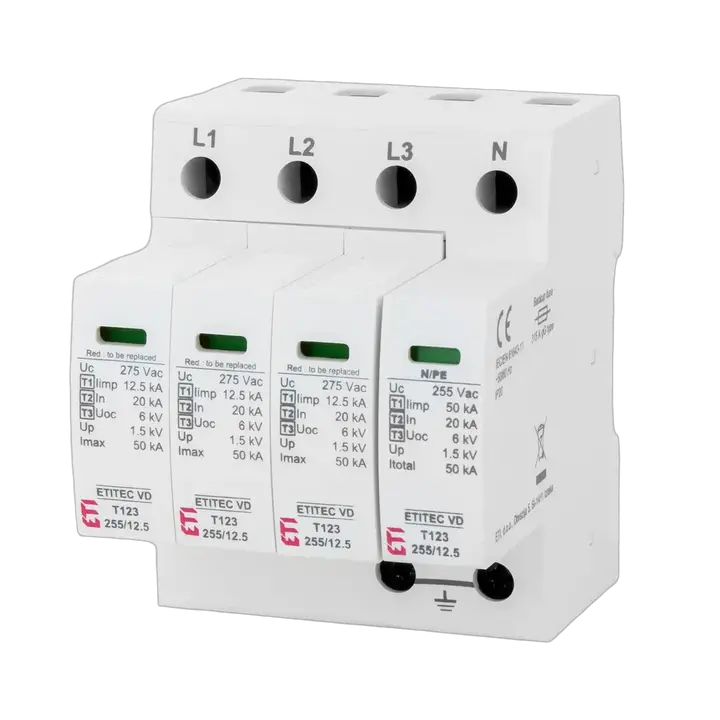

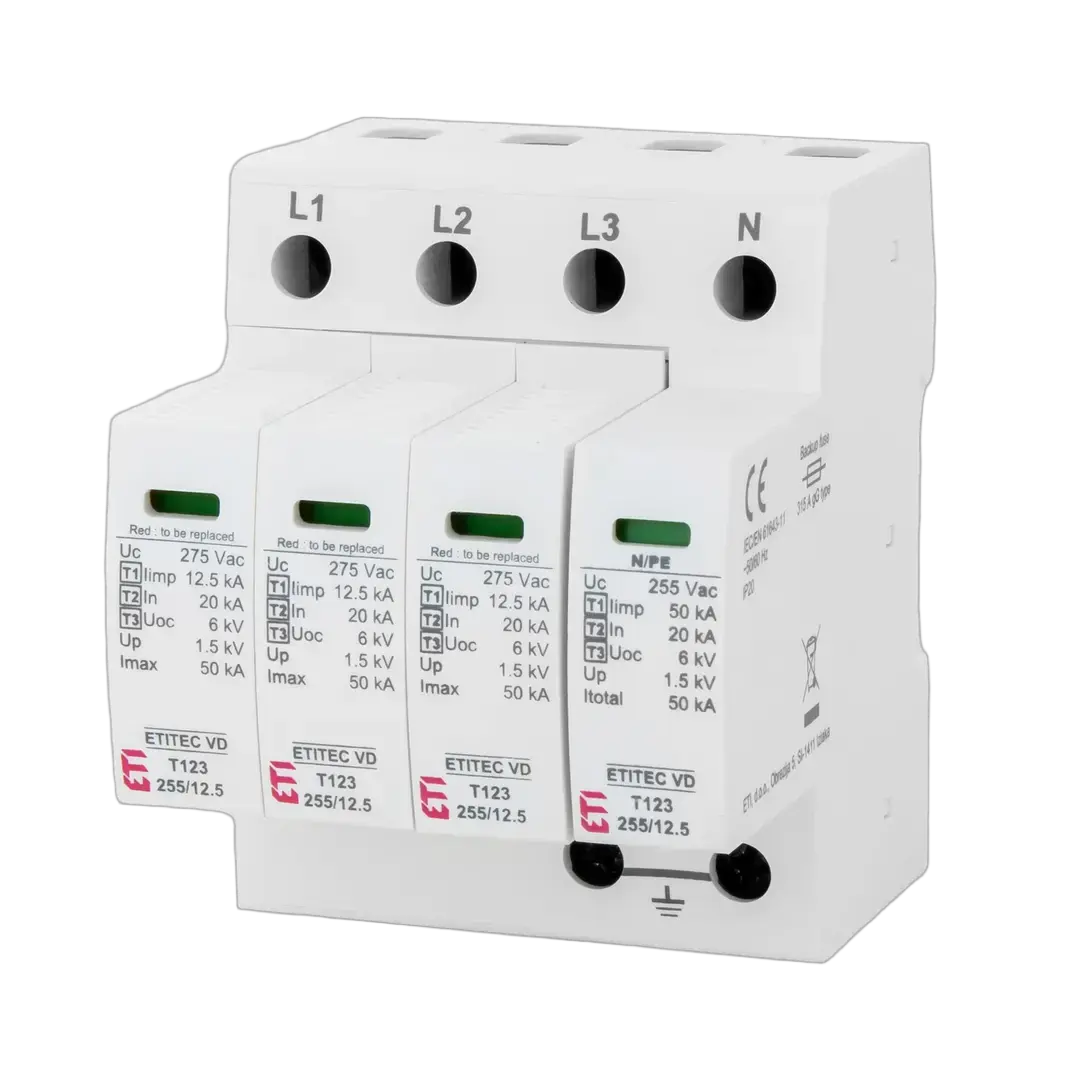

Image of ETITEC VD T123 255/12,5 3+1 RC

ETITEC VD T123 255/12,5 3+1 RC Surge arrester

ETI Code:: 002442996
Function:: SPD
Surge arrester type:: T1, T3, T2
Uc Continous Operating Voltage AC:: 275 V
Iimp(10/350) Impulse Current:: 12.5 kA
Nominal Discharge Current (8/20 μs) In:: 20 kA
Max. Discharge current Imax, 8/20:: 50 kA
Current type:: AC
Remote signalisation:: Yes
Leakage Current:: Yes
Network system:: TT/TN-S
Number of modules:: 4
Installation:: DIN
Built-in depth:: 87.8 mm
Catalogue Group:: ETITEC VD

Technical data catalog

Product

Net weight of the product: 0.218 kg
Net width: 36 mm
Net height: 99 mm
Net depth: 67 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400092809
Basic packaging weight: 0.03 kg
Basic Packaging Dimensions Height: 92 mm
Basic Packaging Dimensions Width: 75 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0.69 dm³

Transport Packaging

Intermediate packaging quantity: 2 pcs
EAN code for a intermediate packaging: 3838400092816
Intermediate packaging weight: 1.279 kg
Intermediate Packaging Dimensions Height: 90 mm
Intermediate Packaging Dimensions Width: 105 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 16 pcs
EAN code for a transport packaging: 3838400092823
Transport packaging weight: 16.11 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28.014 dm³
Pallet quantity: 640 pcs
Customs tariff: 85354000

Remote signalling: Yes
Voltage switching spark gap technology: Yes
Degree of protection (IP): IP20
Lightning impulse current (10/350 µs): 12.5 kA
Number of poles: 4
System configuration TT: Yes
Signalling at the device: Optical
Max. continuous voltage AC: 255 V
